12V9 Resin Bond Grinding Wheel for TCT Circular Saw Blade

Resin bond diamond grinding wheels mainly used in the field of TCT circular saw blade grinding. It can perform well in end face grinding, top grinding, side grinding, tooth grinding, tungsten carbide hard alloy tip grinding and steel body grinding.

12V9 Resin Bond Grinding Wheel for TCT Circular Saw Blade






 Features:

* Good self-sharpening and sharp cutting
High efficiency and high precision
High resistence and best polishing
Low roughness of work piece surface
Less heat generating
Without burning work piece

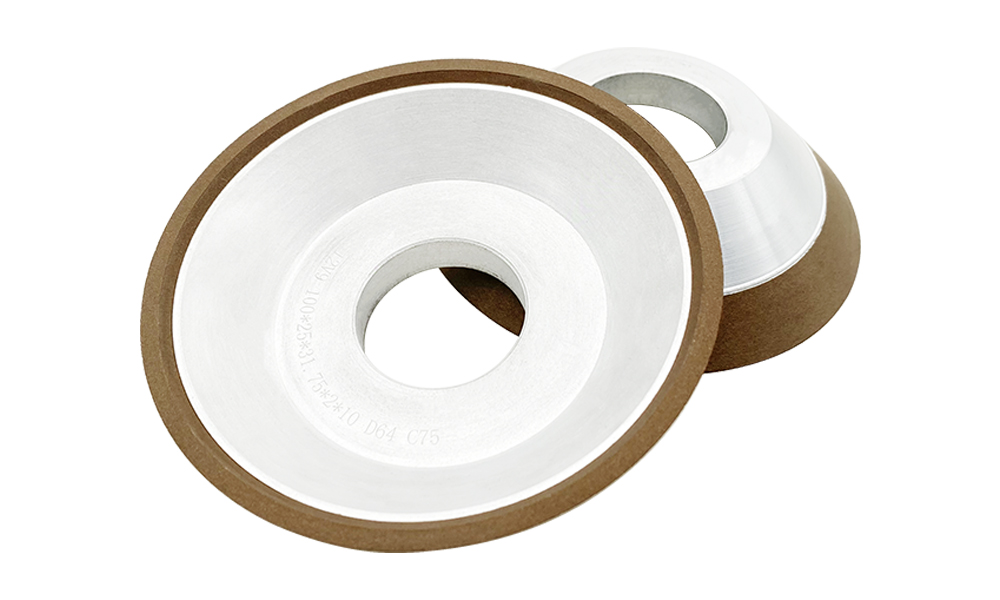

12V9



12V9

 Parameters:

Abrasive Diamond, CBN
Bonding Resin
Model 12V9
Grit 80-600
Popular Sizes 2"-8"
MOQ 5 piece

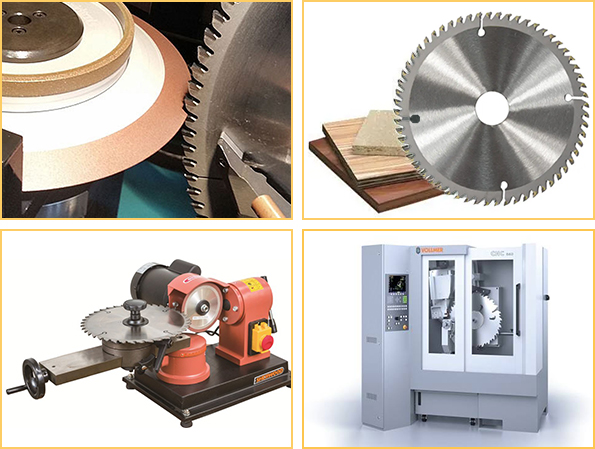

 Application:

Grinding Workpiece: TCT circular saw blade

Applicable Tool Material: Tungsten carbide hard alloy tip

Grinding Method: Face grinding

Applicable Grinding Machine: Wright, Volmer, ABM, Colonial Saw, Armstrong, Amada, Jones Saw Tools, Baileigh Industrial, Foley Belsaw, Thorvie, Bell, Acme, Autool, Nelson, JEFFER, EYAN, Walter, UTMA ,Widma, AKE, STEHLE, SATURN.

Saw Blade Applicable: SimondS, FREUD, FSTOOL,TENRYU,THURSTON MFG.

Specifications:

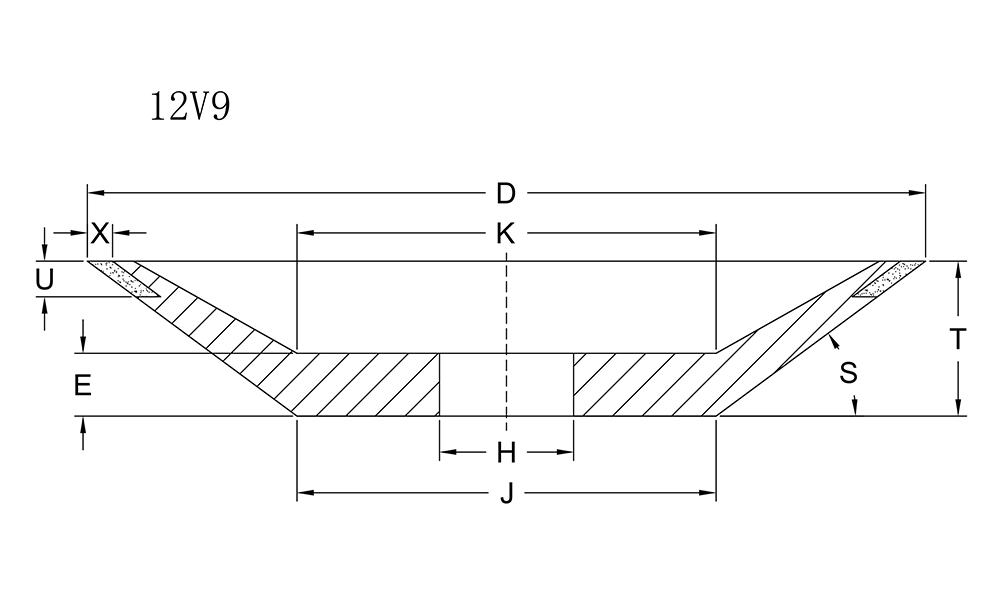

Dimensions
Shape D(mm) T(mm) H(mm) X(mm) W(mm)
12V9 50 25-40 16, 20, 31.75, 32 2-6 3-10
75 25-40 16, 20, 31.75, 32 2-6 3-10
100 25-40 16, 20, 31.75, 32 2-6 3-10
125 25-40 16, 20, 31.75, 32 2-6 3-10
150 25-40 16, 20, 31.75, 32 2-6 3-10
175 25-40 16, 20, 31.75, 32 2-6 3-10
200 25-40 16, 20, 31.75, 32 2-6 3-10
