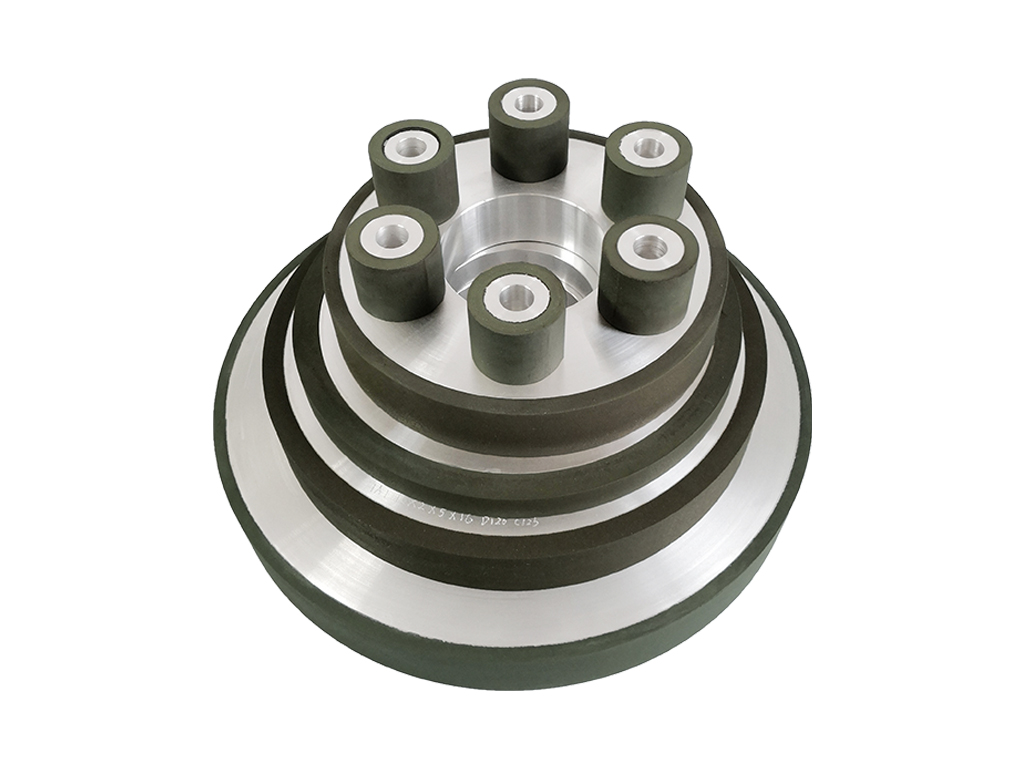

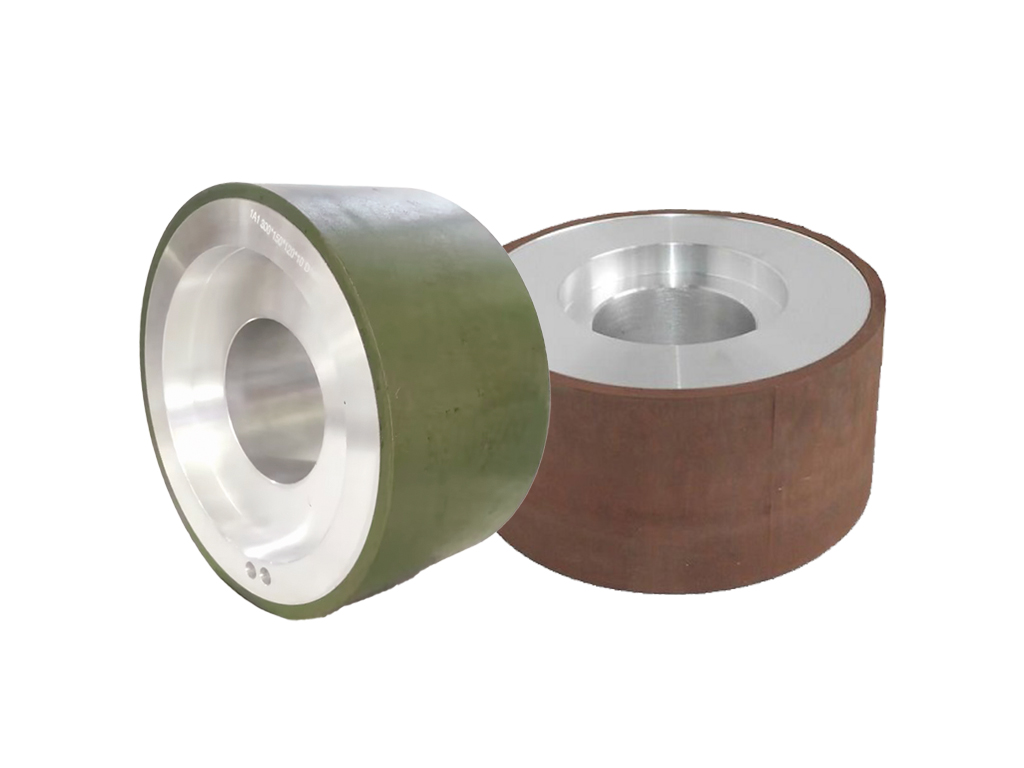

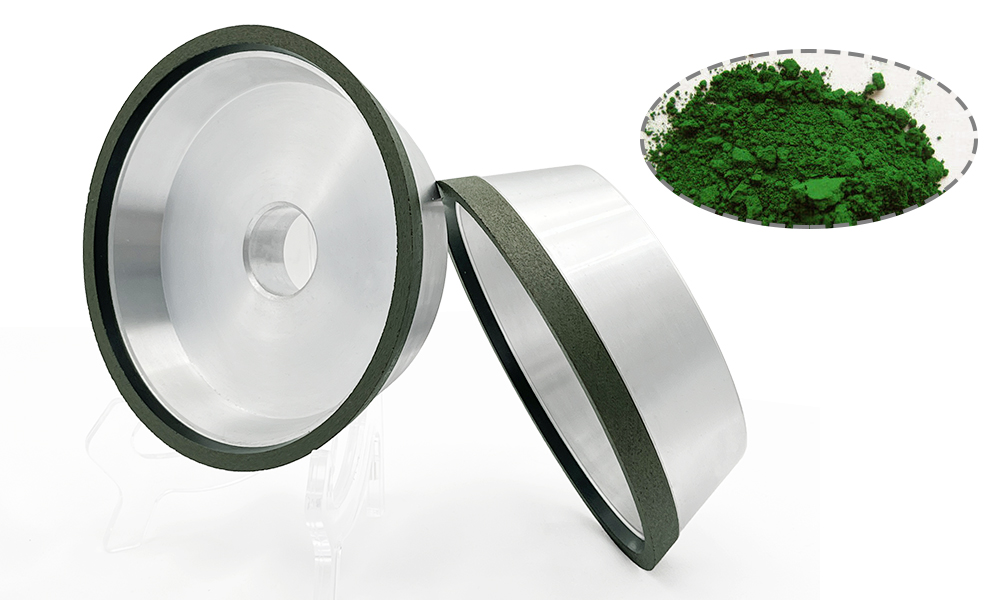

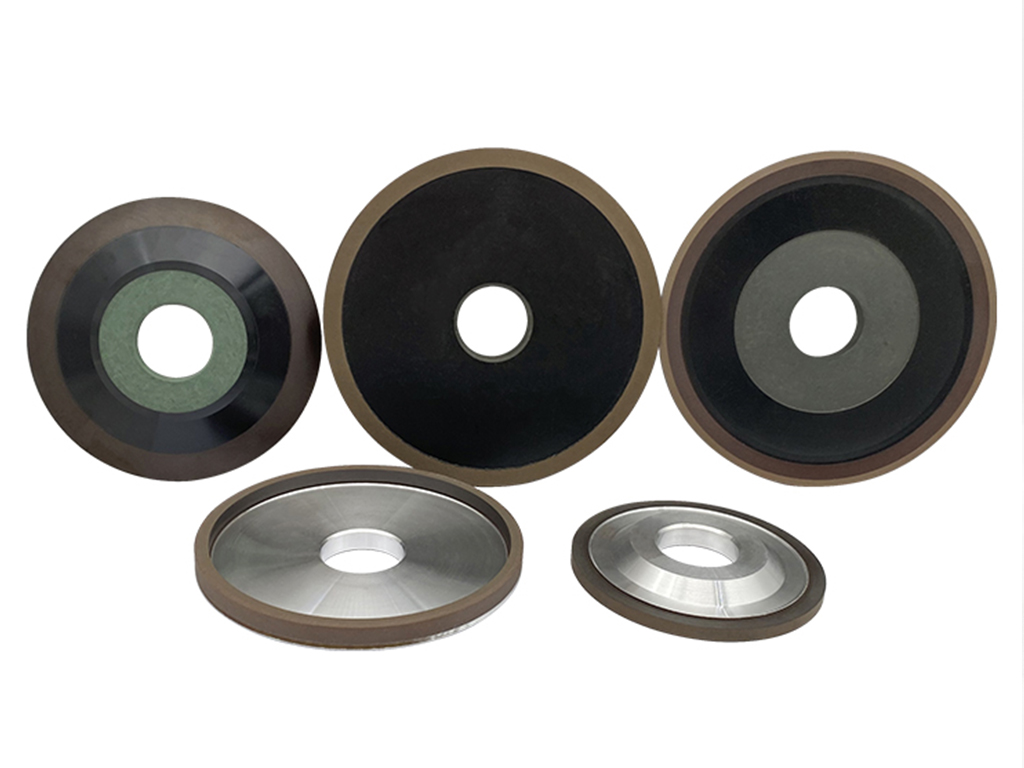

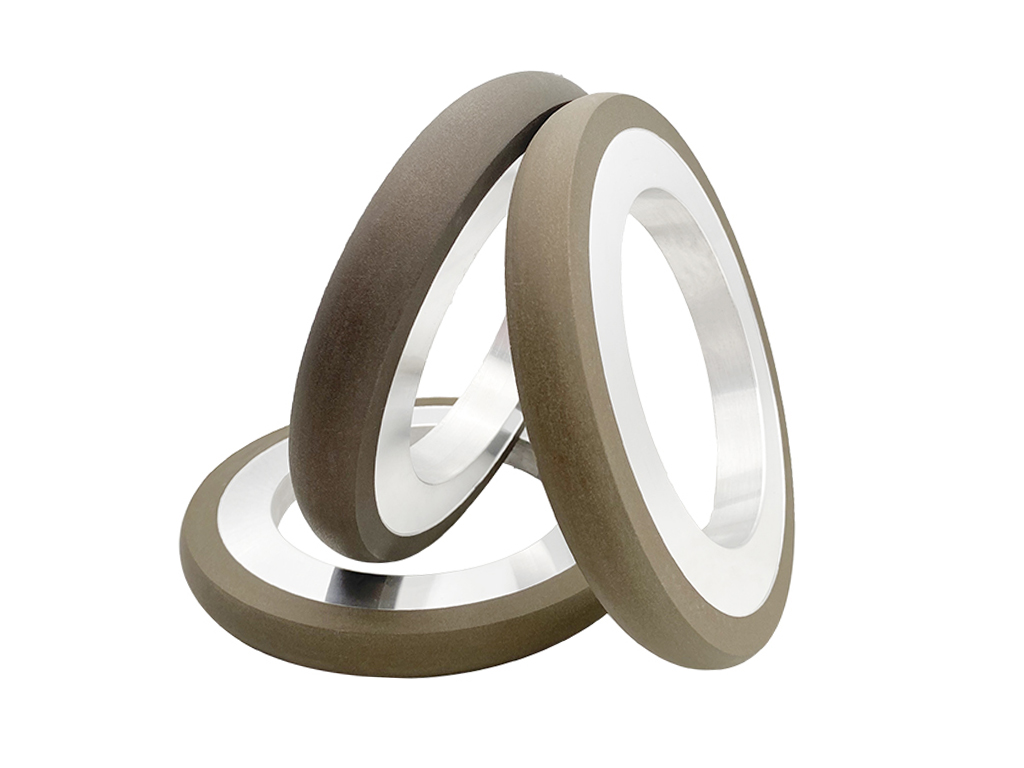

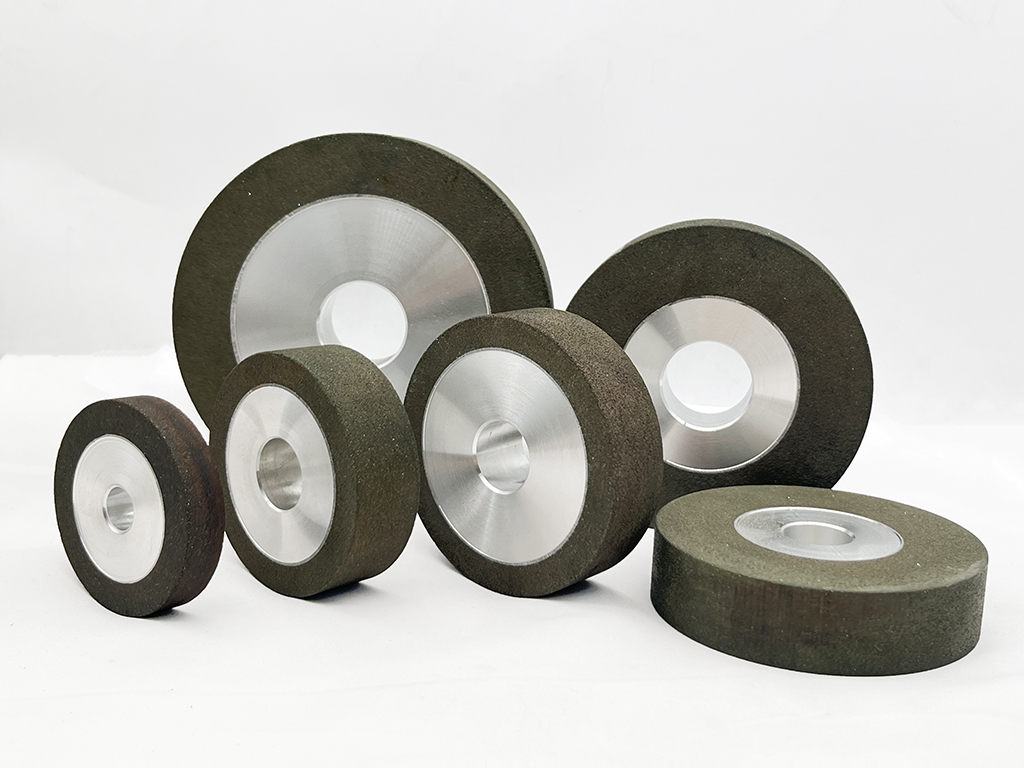

Resin Bond Diamond Grinding Wheels is made with resin powders and synthetic diamond powders, which
are pressed together at high temperature on Liquid Pressing Machines. Resin is a softer traditional abra-
sives, it is cheaper and easy to meld at low temperture and bonds well superabasives, so it is ideal to be a bonding materials for superabrasive wheels and tools.
Our resin bonded diamond CBN grinding wheels are designed for batch grinding and hard material grinding in different workshops, mainly used for grinding harder materials with a hardness exceeding HRC40. It is currently the most economical and effective grinding wheel.
REZZ will provide you with system solutions for industries such as CNC Tool Grinding, Woodworking Tool Grinding, Thermal Spraying Coated, Silicon Wafer Grinding, etc.
Resin Bond Features:
* Good self-sharpening
* Sharp cutting, high efficiency
* High efficiency
* Low roughness of work piece surface
* Few heat generating, without burning workpiece
* Suitable for high efficiency and precision grinding of most workpieces.
|
|
|
|
Grinding Methods:

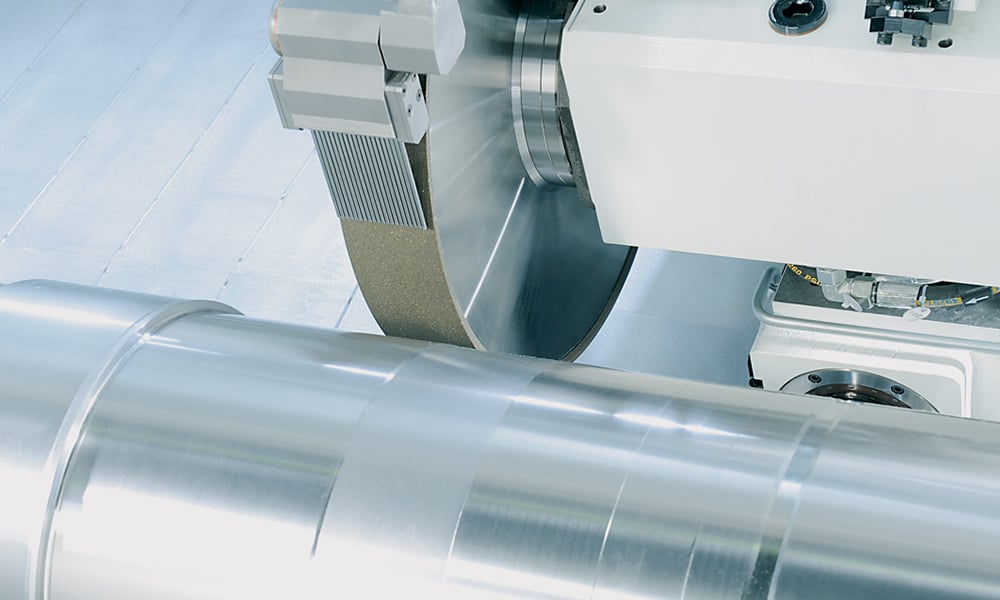

| 1 | Cylindrical Grinding |
| 2 | Surface Grinding |
| 3 | Centerless Grinding |
| 4 | ID Grinding |
| 5 | Profile Grinding |
| 6 | Cutting |
|
|
Application:
Grinding Workpiece: tungsten carbide cutting tools, ceramic, silicon, glass, quartz and thermal spraying alloy, etc.
Applicable Tool Material: tungsten carbide materials, ceramic materials, magnetic materials, silicon materials, thermal spraying aloy materials, etc.
Applicable Grinding Machine: CylindricalGrinding Machine, Surface Grinding Machine, Centerless Grinding Machines, ID Grinding Machine, Profile Grinding Machine, Bench & Pedestal Grinder, Tool&Cutter Grinding Machine, Gear Grinding Machines, Saw Blade Grinding Machines, Cultery Grinding Machines.
Specifications:
| Dimensions | |||||||
| D | T | H | X | W | Grit | ||
| (mm) | Inch″ | (mm) | Inch″ | ||||
| 50-1000 | 2″-39.5″ | 2-50.8 | 0.08-2″ | TO YOUR REQUEST | 2-38mm | 2-30mm | customized |

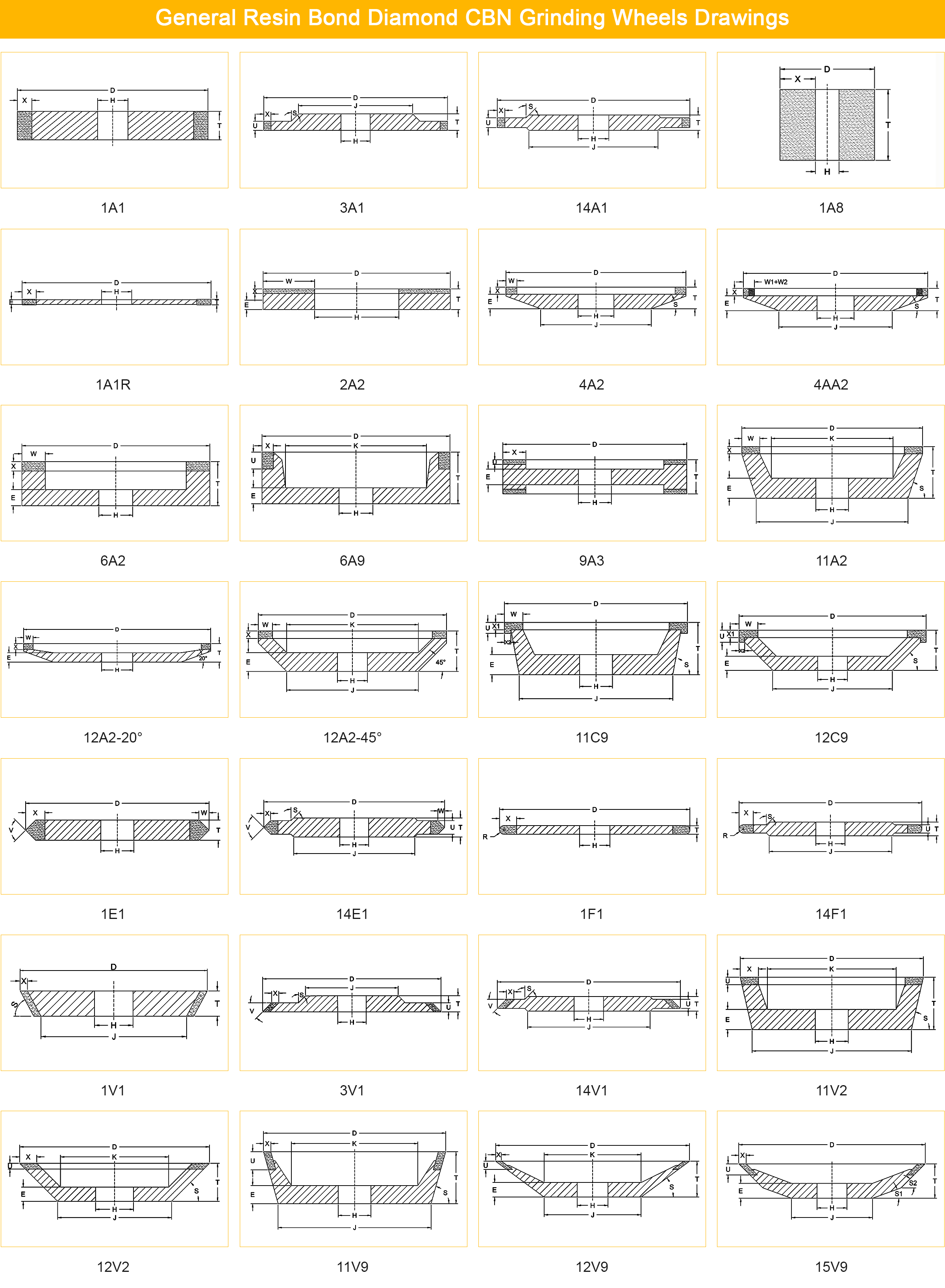

| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | |||||||
