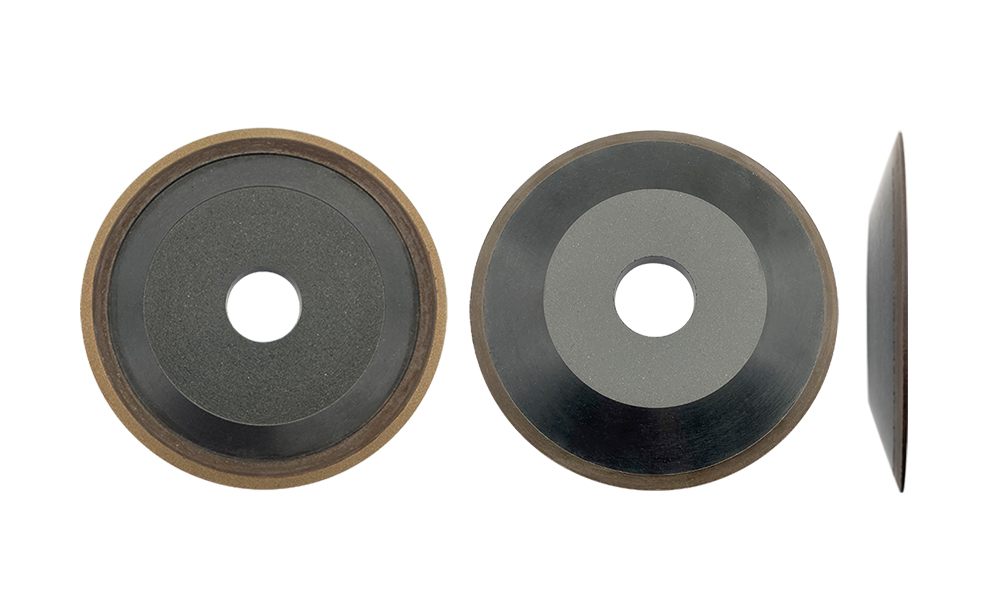

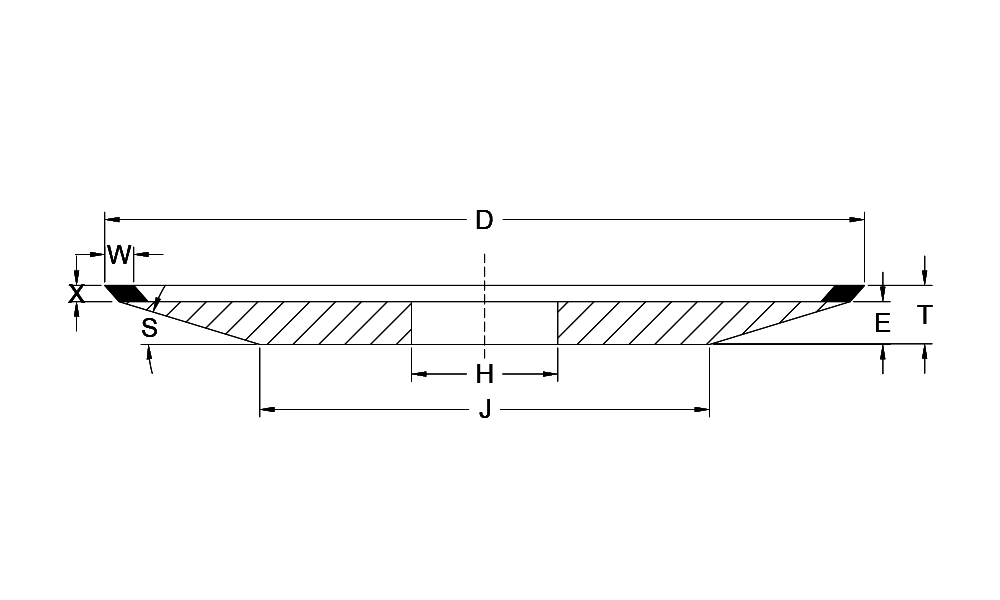

The drawing of Shine Abrasives Resin Bond Diamond Wheels Bakelite Body For Carbide Saws Grinding Saw tooth face grinding or sharpening. Used for sharpening and finishing of multi-blade carbide tools with straight and spiral teeth, back surface grinding of cutters, drills, and other tools.
Bakelite Body face grinding tct circular saw blade grinding wheels
Features:
* Good self-sharpening and sharp cutting
* High efficiency and high precision
* High resistence and best polishing
* Low roughness of work piece surface
* Less heat generating
* Without burning work piece
|
|
|
|
Parameters:
| Abrasive | Diamond |
| Bonding | Resin |
| Model | Dish |
| Grit | 240# -400# |
| Popular Sizes | 100-150mm |
| MOQ | 5 piece |
|
|
Application:
Grinding Workpiece: TCT circular saw blade
Applicable Tool Material: Tungsten carbide hard alloy tip
Grinding Method: Face grinding
Applicable Grinding Machine: Wright, Volmer, ABM, Colonial Saw, Armstrong, Amada, Jones Saw Tools, Baileigh Industrial, Foley Belsaw, Thorvie, Bell, Acme, Autool, Nelson, JEFFER, EYAN, Walter, UTMA ,Widma, AKE, STEHLE, SATURN.
Saw Blade Applicable: SimondS, FREUD, FSTOOL,TENRYU,THURSTON MFG.
Specifications:
| Dimensions | |
| Diameter | 100/125/150mm or As required |
| Grit | 240/320/400 or As required |
| Body | Bakelite Body or aluminum body |
| Wheel Shape | 4A2, 12A2, 4BT9, 12V2, 11V2, 12V2, 6A2, 14A1, 12V9, 3V1, 11A2 |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | |
