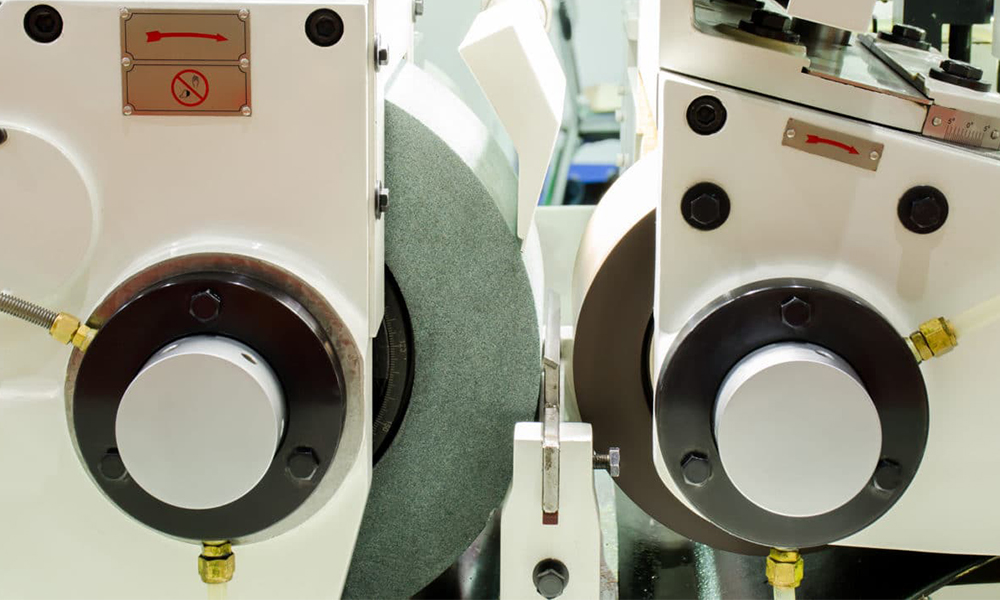

Centreless (centerless) grinding can perform excellent roundness of the work piece. The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel. In centerless grinding, regulating wheel control and drive the workpiece, grinding wheel do the grinding effects on the workpiece.

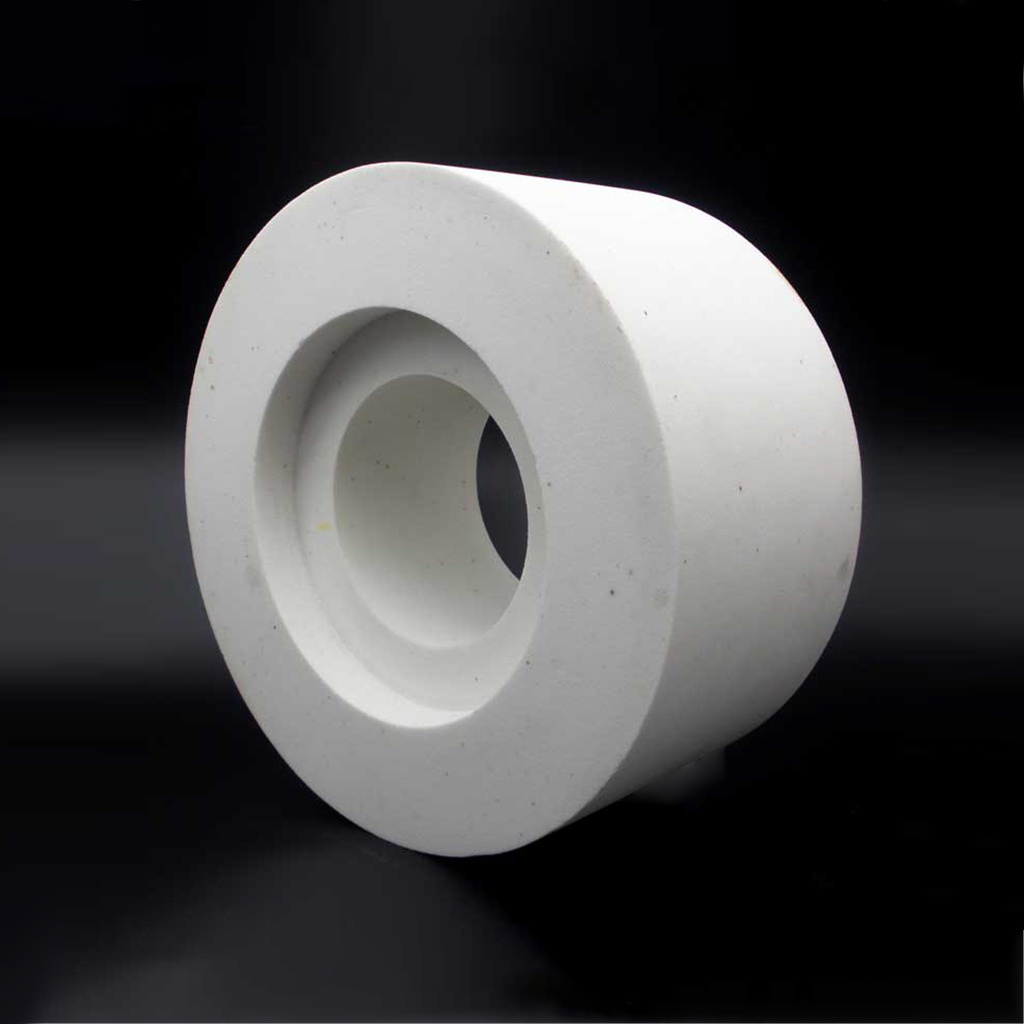

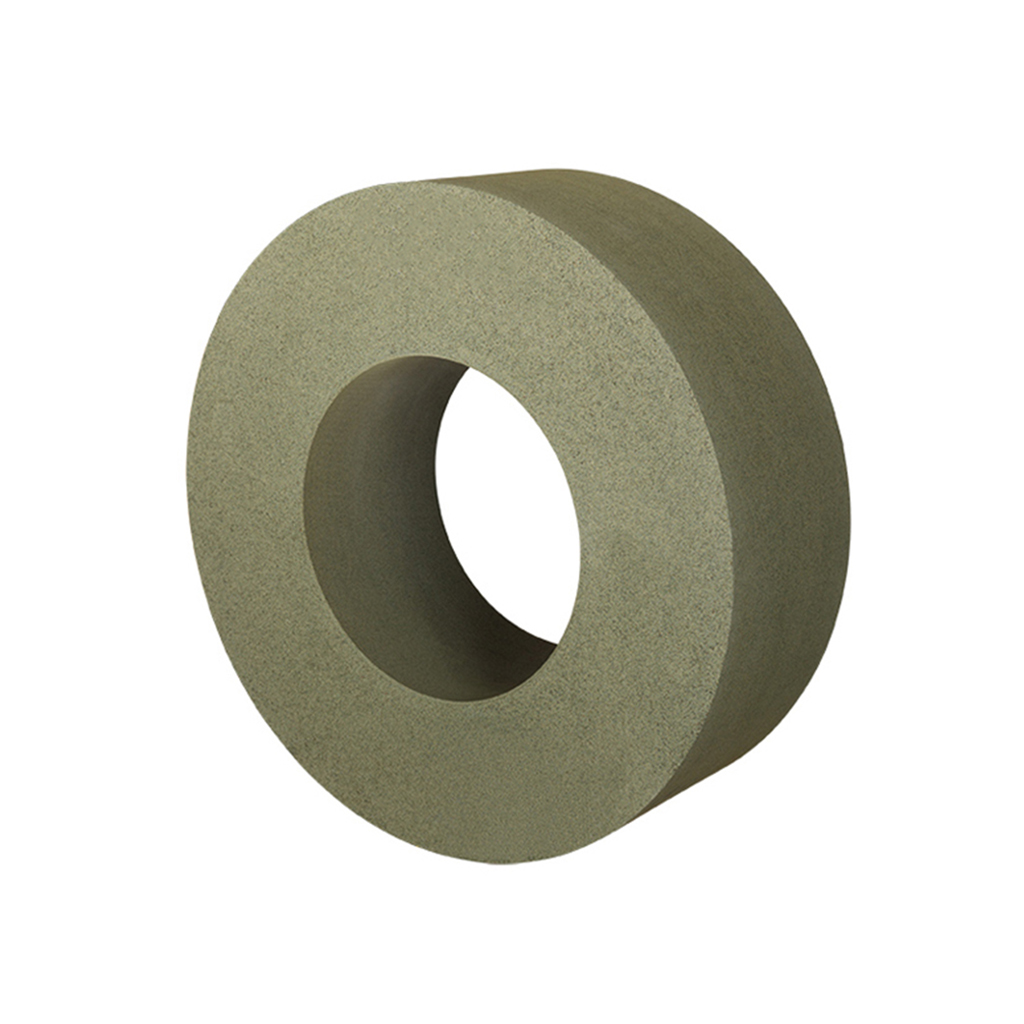

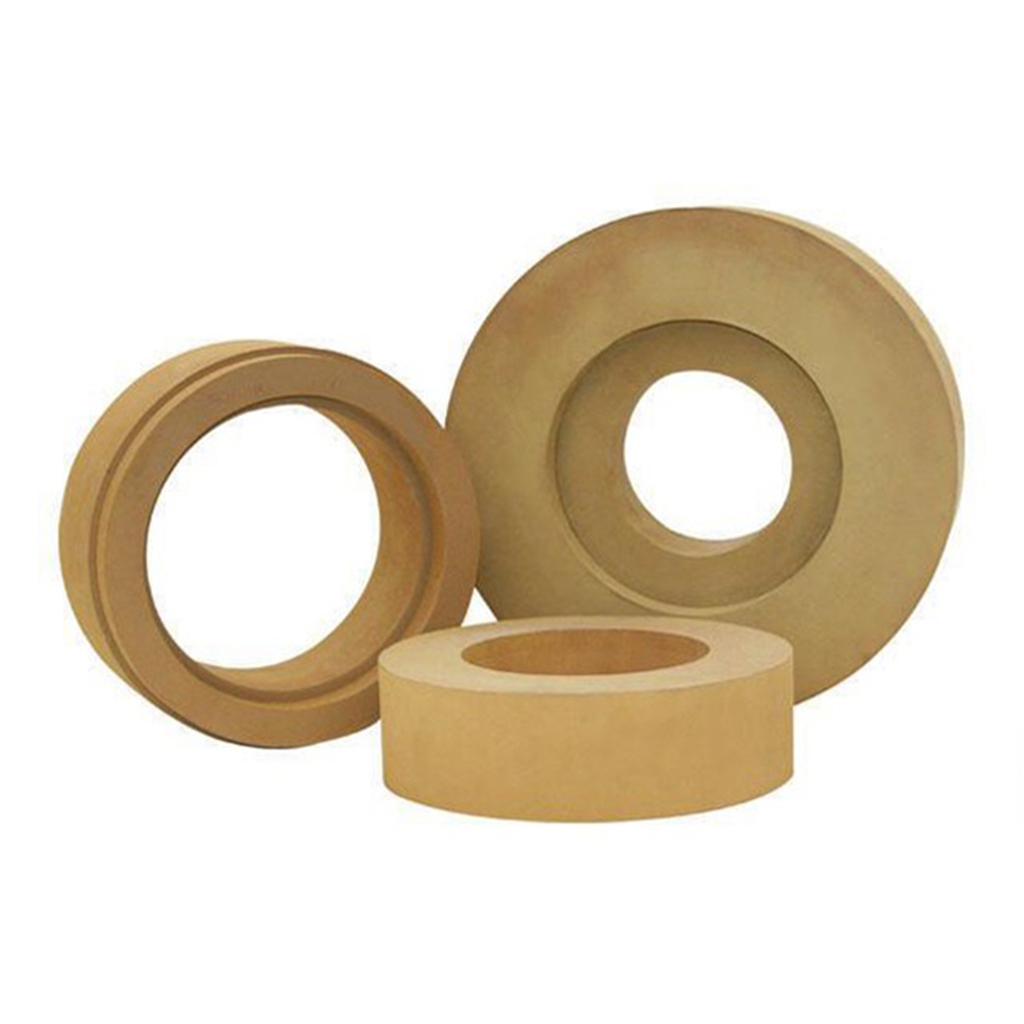

Materials: Diamond & CBN, Brown Aluminum Oxide, White Aluminum Oxide, Black Silicon Carbide, Green Silicon Carbide.
Bond Type: Resin bond, Vitrified bond, Rubber bond
Diameter: 300mm – 500mm
MOQ：1 pcs

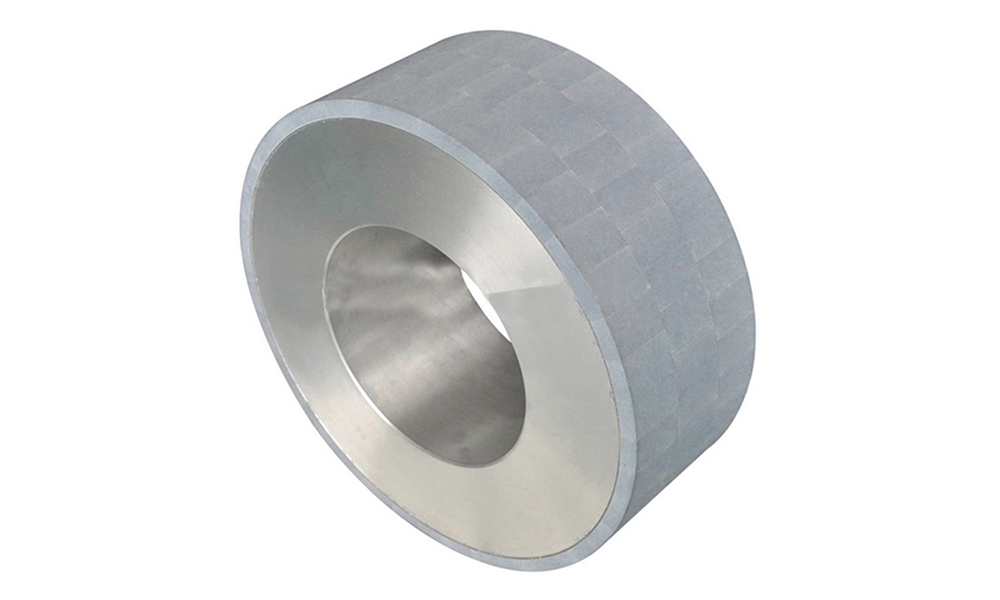

Centerless Grinding is ideal for grinding large quantities in the shortest possible time. Easy installation and changeover guarantee flexible adjustment to market requirements. The REZZ Centerless Grinding Diamond/CBN wheels impress with their sophisticated overall concept and high level of productivity.
REZZ will provide you with system solutions for industries such as bearing, auto and auto ancillaries, cutting tools, stainless steel bar, alnico, High Speed Steel, Iron.
Features:
* Efficient batch external grinding
* High roundness and cylindricity of workpiece and
good consistency of dimension
* Good surface finish after fine grinding
* Used for rough grinding, semi-fine grinding and fine grinding
|
|
|
|
Parameters:
| Abrasive | Diamond, CBN |
| Bonding | Resin, Vitrified |

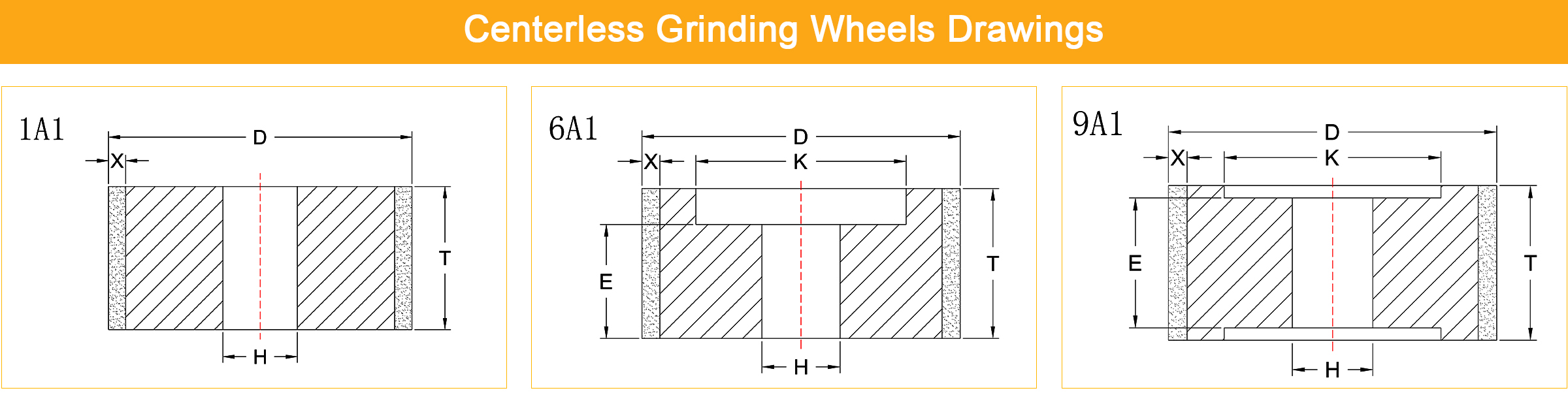

| Model | 1A1, 6A1, 9A1 |
| Grit | customized |
| Popular Sizes | 300-500mm |
| MOQ | 1 piece |
|
|
Application:

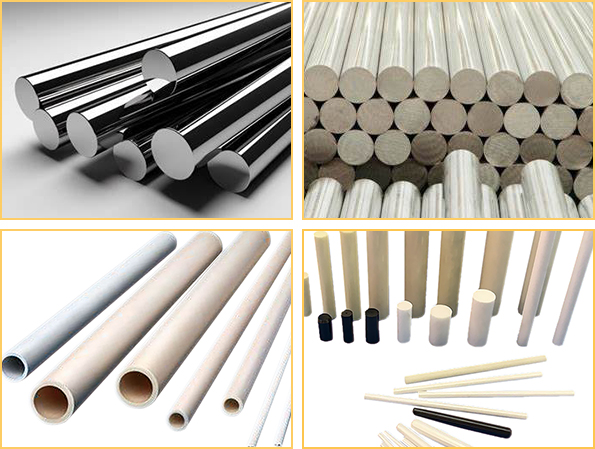

Grinding Workpiece: tungsten carbide rods, steel rods, ceramic rods.
Applicable Tool Material: tungsten carbide, ceramics, magnetic material,
stainless steel bar, PCD and PCBN compositives.
Grinding Method: Centerless grinding
Applicable Grinding Machine: Centerless Grinding Machine, such as Koyo, Crystec, Dedtru, Landis, Okuma, Paragon, Royal Master, Unison,WMV, etc.
Specifications:
| Dimensions | |||
| D(mm) | T(mm) | H(mm) | X(mm) |
| 300 | 50 to 500 | TO YOUR REQUEST | 5 to 15 |
| 400 | 50 to 500 | 5 to 15 | |
| 450 | 50 to 500 | 5 to 15 | |
| 500 | 50 to 500 | 5 to 15 | |
| Any nonstandard size and grits size can customised (tell us size or drawing is enought) | |||
