Diamond polishing wheels with the feature fine machined surface and long service life etc, mainly applicable for grinding and polishing gemstone, jewelry, marble, glass, HSS, carbide, tungsten steel, stones, concrete, ceramic, asphalt and so on.

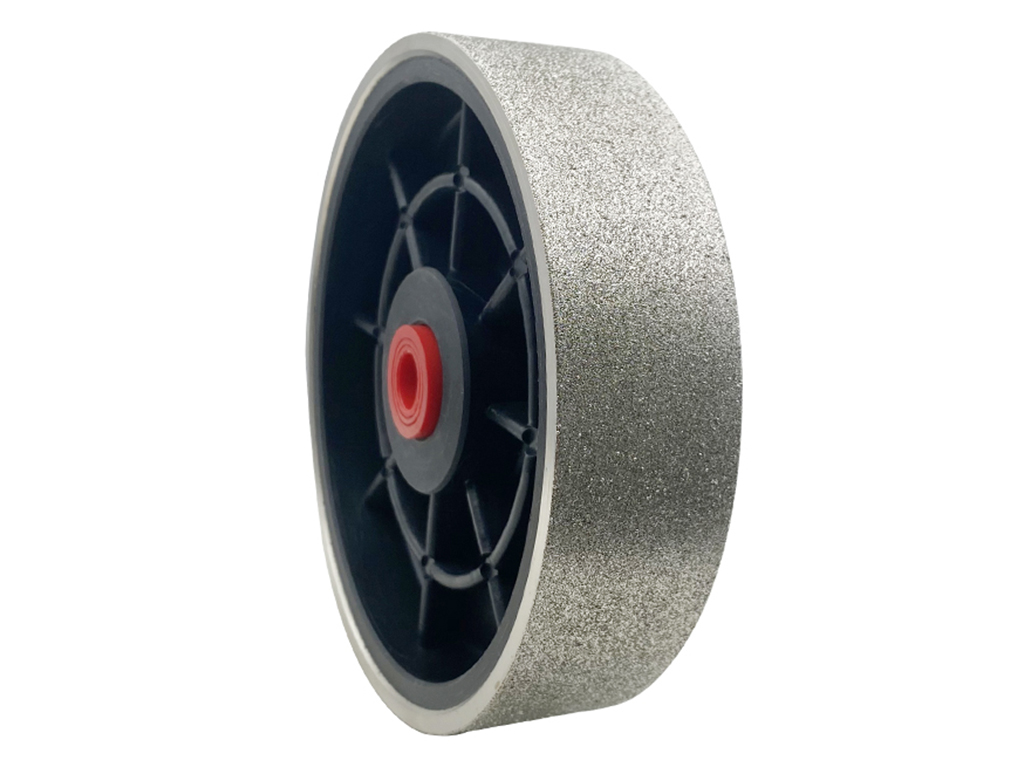

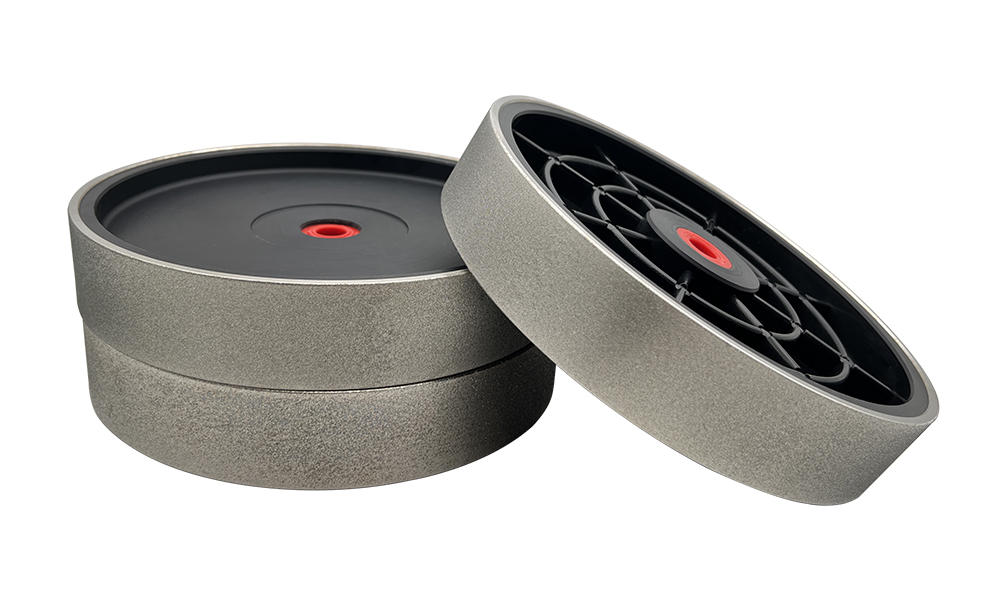

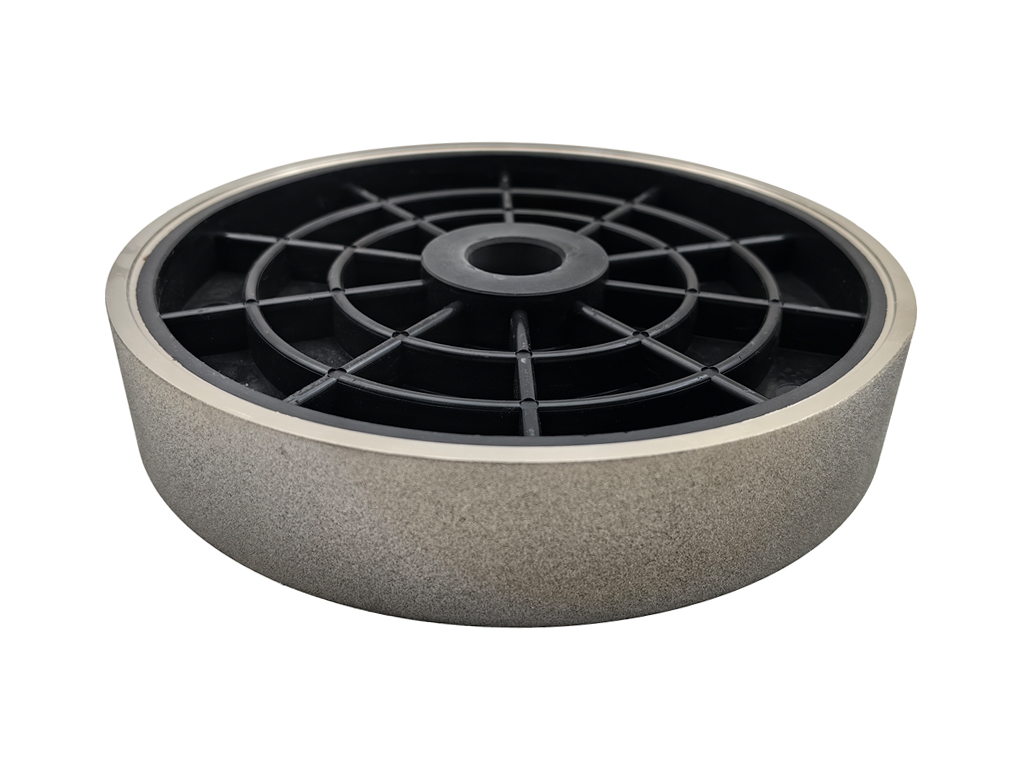

Electroplated Grinding Wheel Lapidary Grinding Diamond Gemstone Polishing wheel Disc
Features:
* High grinding efficiency
* High compressive strength
* High viscosity,the sand not easy to drop
* Wear resistant
* Fine surface processing, long service life
|
|
|
|
Parameters:
| Abrasive | Diamond |
| Bonding | Electroplated |
| Model | 1A1 |
| Grit | #40-#2000 |
| Popular Sizes | 5-500mm |
| MOQ | 5 piece |
|
|
Application:
Grinding Workpiece: Gemstone,jewelry, marble, glass, HSS, carbide, tungsten steel, stones, concrete, ceramic, asphalt and so on.
Applicable Tool Material: Construction material, furniture,jewelry, etc. Hard and brittle materials, metal material, hard alloy material's outline process, electrochemical grinding.
Grinding Method: Polishing
Applicable Grinding Machine: Cabbing machines
Specifications:
| Dimensions | |
| Abrasive | Diamond / CBN |
| Size | Diameter:5mm-500mm |
| Thickness: 1mm-500mm | |
| Hole:10mm-127mm | |
| Hot Selling Size | 6''X1''X1'' |
| 6''X1.5''X1'' | |
| 8''X2''X1'' etc | |

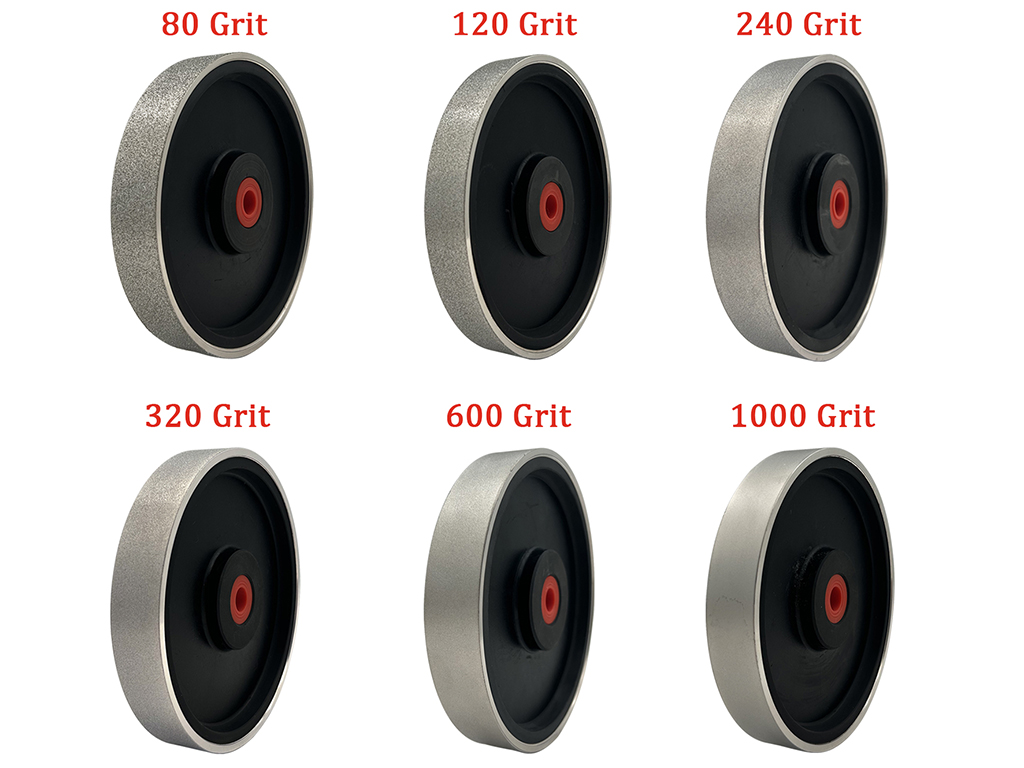

| Grit Size | 40#--2000# |
| Any nonstandard size and grits can customized.(tell me size or drawing is enough) | |
