Cylindrical grinding wheels is used on Cylindrical grinding machines. RZ brings Cylindrical Grinding Wheels with different abrasives. Aluminum Oxide Grinding Wheels, Silicon Carbide Grinding Wheels, Diamond Grinding Wheels and CBN Grinding Wheels are all available.
Description:

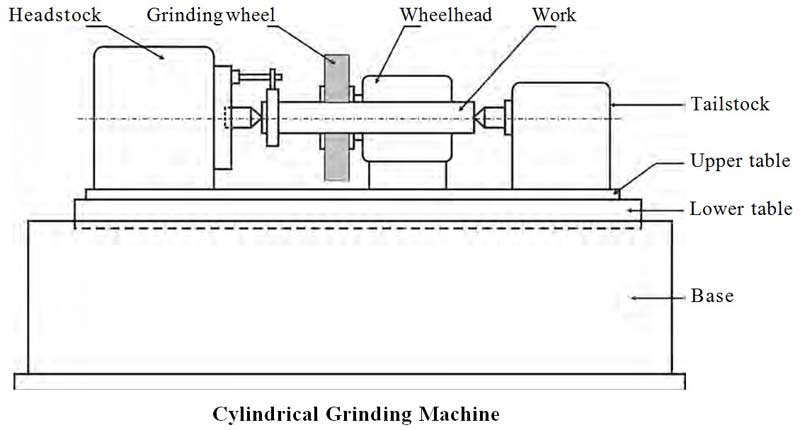

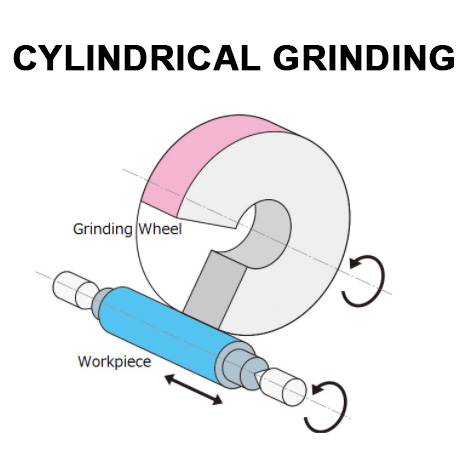

Cylindrical grinding (also called center -type grinding) is used to grind the cylindrical surface and shoulders of the workpiece.
There are five different types of cylindrical grinding (various grinding methods include straight cylindrical, taper, end face, and total shape grinding):
* Outside diameter (OD) grinding
* Inside diameter (ID) grinding
* Plunge grinding
* Creep feed grinding
* Centerless grinding

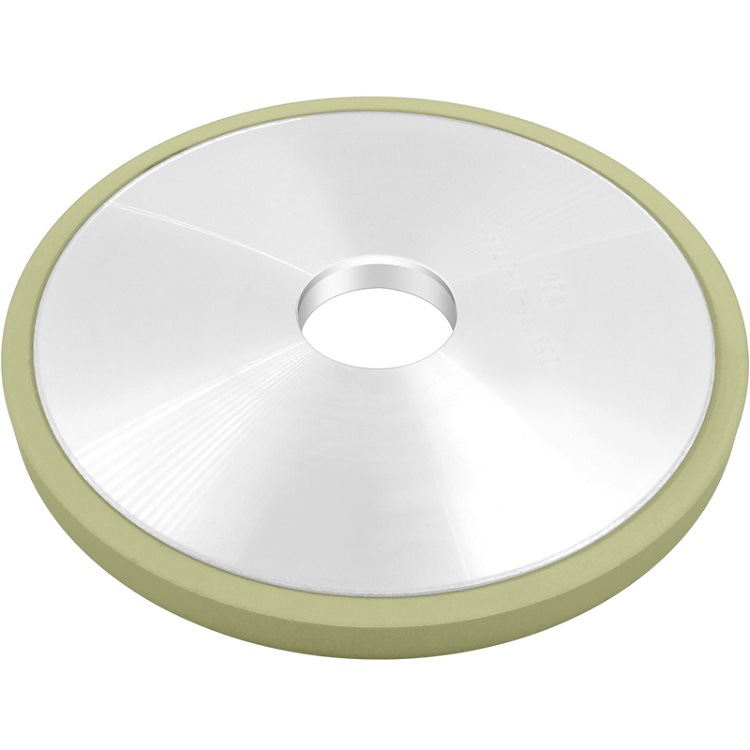

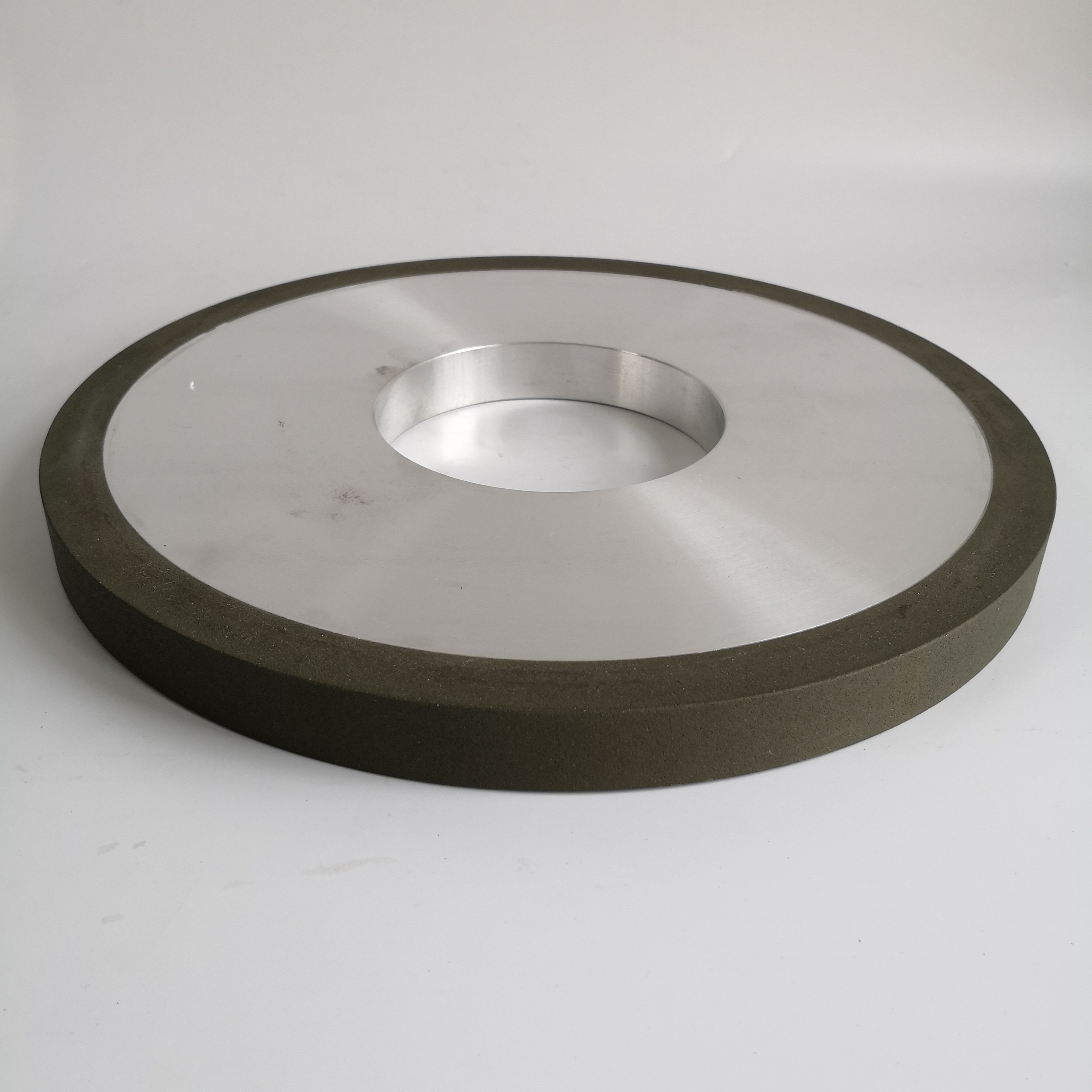

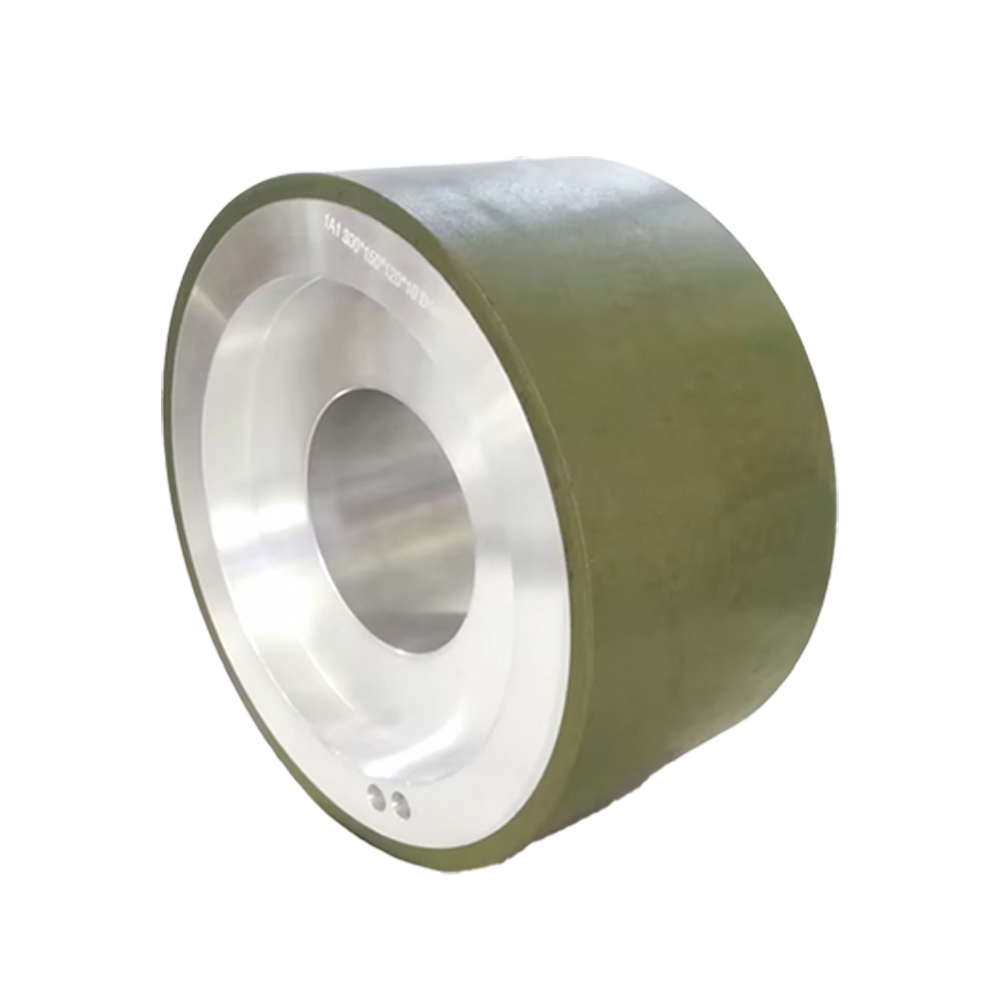

Diamond & CBN Cylindrical Grinding Wheels

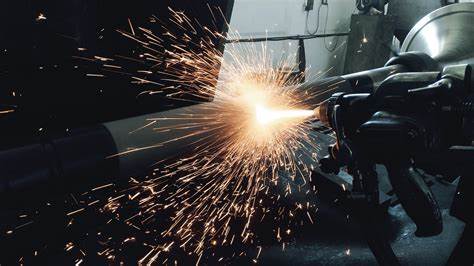

Diamond cylindrical grinding wheel for thermal spray coating

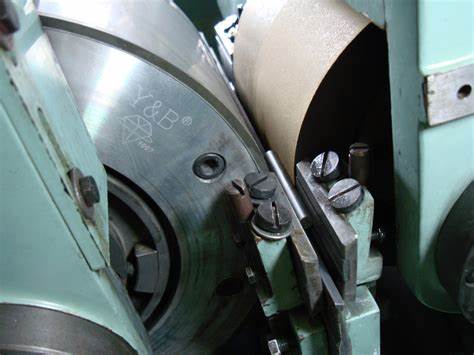

Centerless diamond grinding wheel
Cylindrical diamond wheel for pdc cutter

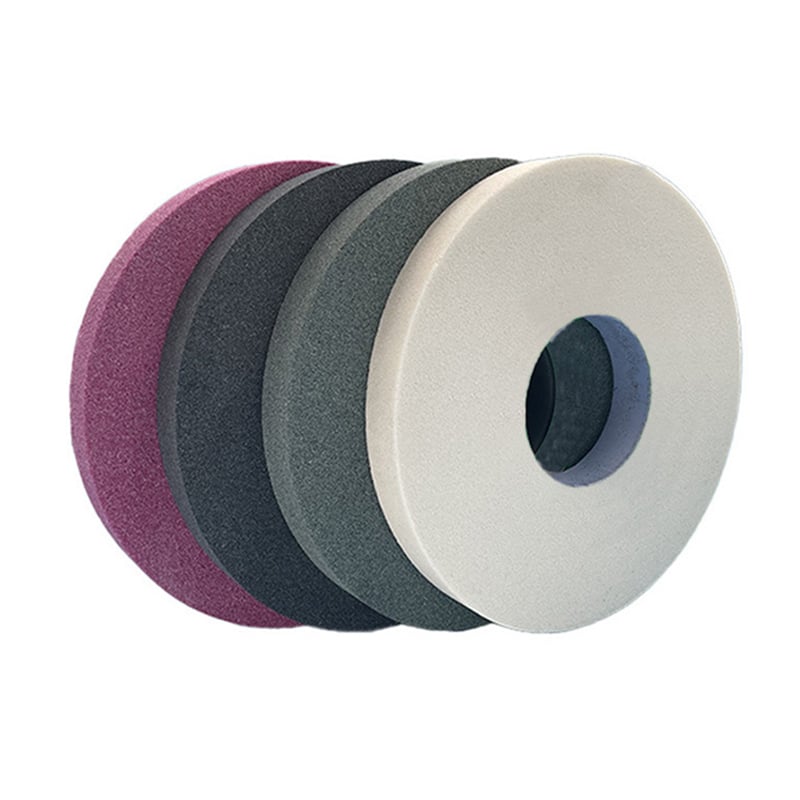

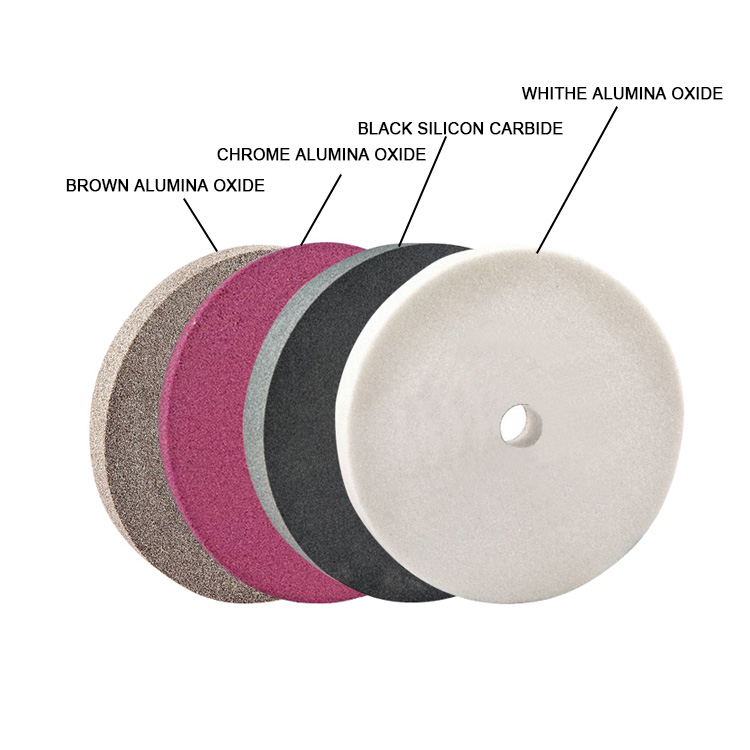

Abrasive Cylindrical Grinding Wheels
Most applications, predominantly use aluminium oxide grinding wheels in a vitrified bond with particle sizes ranging between 54 and 180, and hardness grades between H and L (depending on requirements). This enables an optimum balance between abrasion and surface finish. However, if extremely fine surface finish levels are required (e. g. Rz < 3 µm), we recommend the use of resin-bonded grinding wheels with grit sizes finer than 150.
Cylindrical grinding generally has longitudinal grinding, horizontal grinding and deep grinding three ways.
(1) Longitudinal grinding
(2) Horizontal grinding
(3) Deep grinding

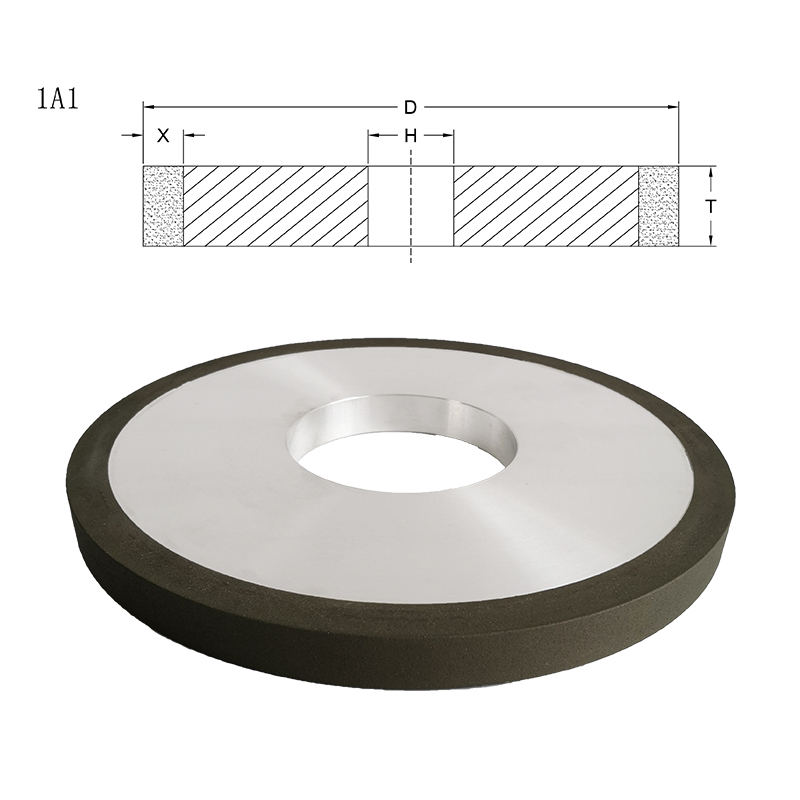

Parameters
| Grinding Wheel diameter D | Grinding Wheel Width | Center Hole Diameter H |
|
5”, 6”, 7”, 8”, 10”, 12”, 14”, 16”, 18”, 20”, 24”, 30”, 35” 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 750 and 900mm |
3/4”, 1”, 1. 5”, 2” and 3”20, 25, 40, 50 and 75mm |
1/2”, 1”, 1-1/4”, 1. 5”, 2”, 3”, 4”, 5” and 12” |

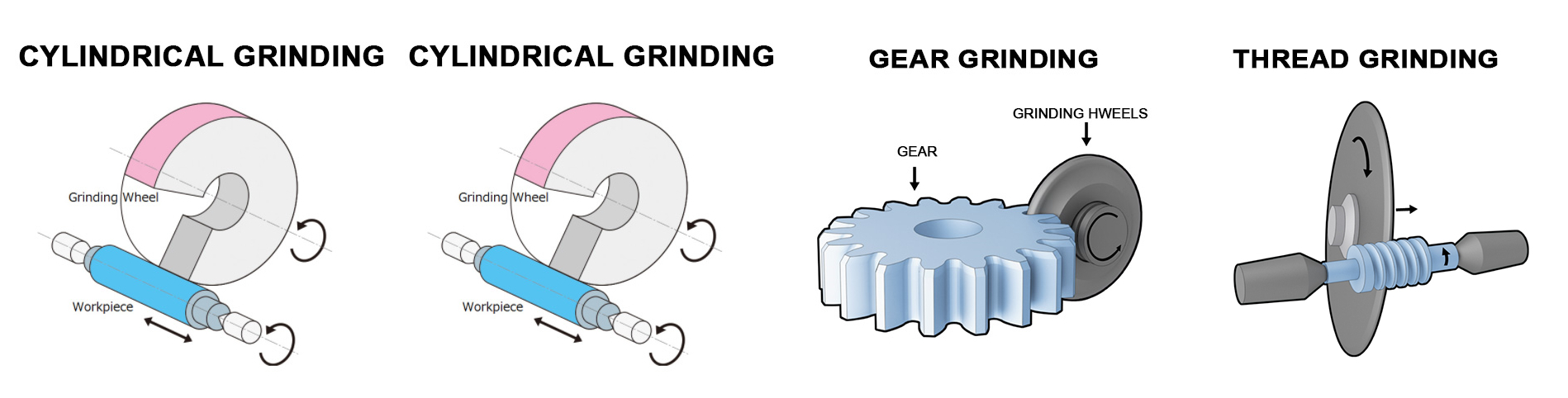

Application
Cylindrical grinding wheels are typically used in the transportation and toolroom industries and are ideal for medium to heavy stock removal. If you are concerned with wheel life and total per-part grinding costs, our cylindrical grinding wheels increase production and decrease cost.
Features：
1. Fast welding speed, 2~10 times faster than traditional grinding wheels.
2. Available from rough grinding to finish grinding
3. Suitable for grinding different materials,
4. High stock removal
5. Precision grinding
6. Low unit-cost
