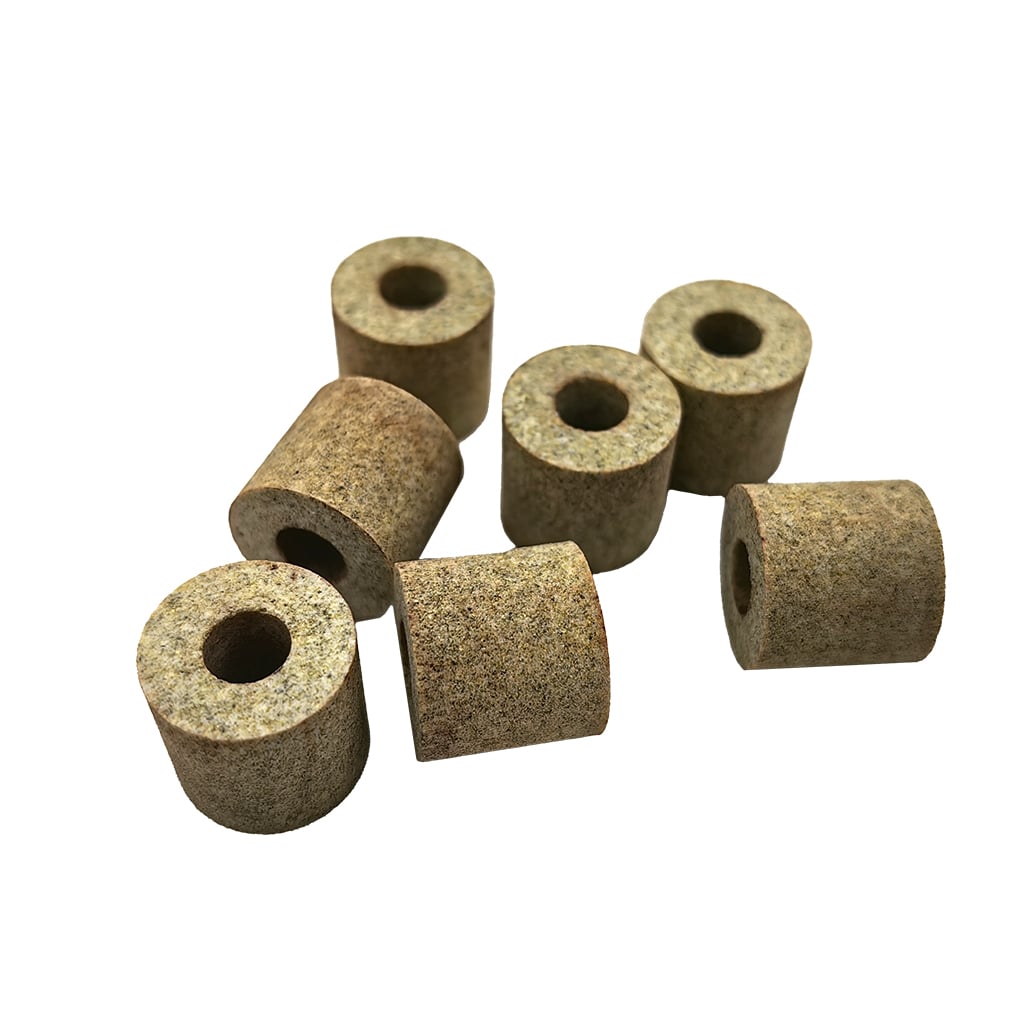

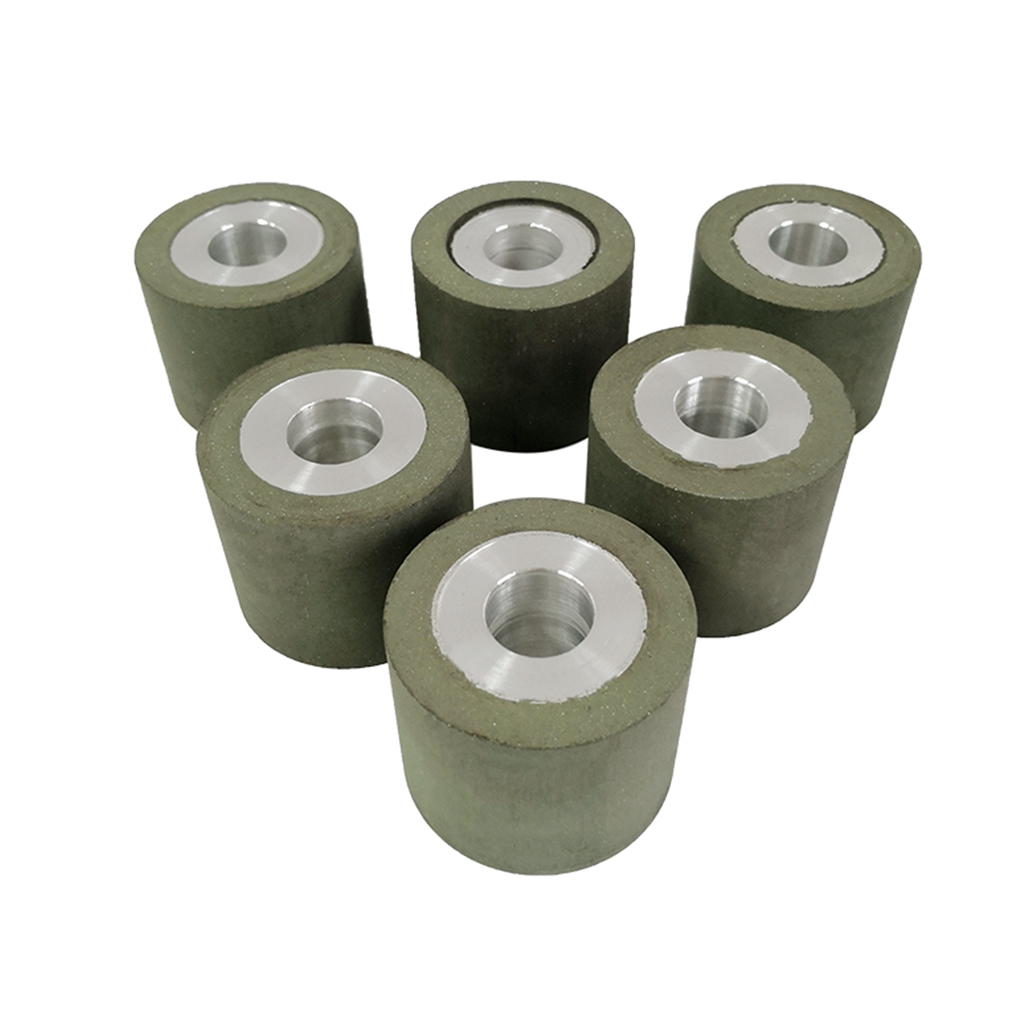

Inner hole & ID Grinding Wheels

Internal grinding is used for the finishing of internal holes and is carried out on an internal grinding machine or a universal cylindrical grinding machine. Through holes, non-through holes, cylindrical or conical holes, stepped holes and hole end faces can be processed.
Materials: Diamond，CBN, PA & SG abrasive
Bond Type: Resin bond, Vitrified bond, Electrified

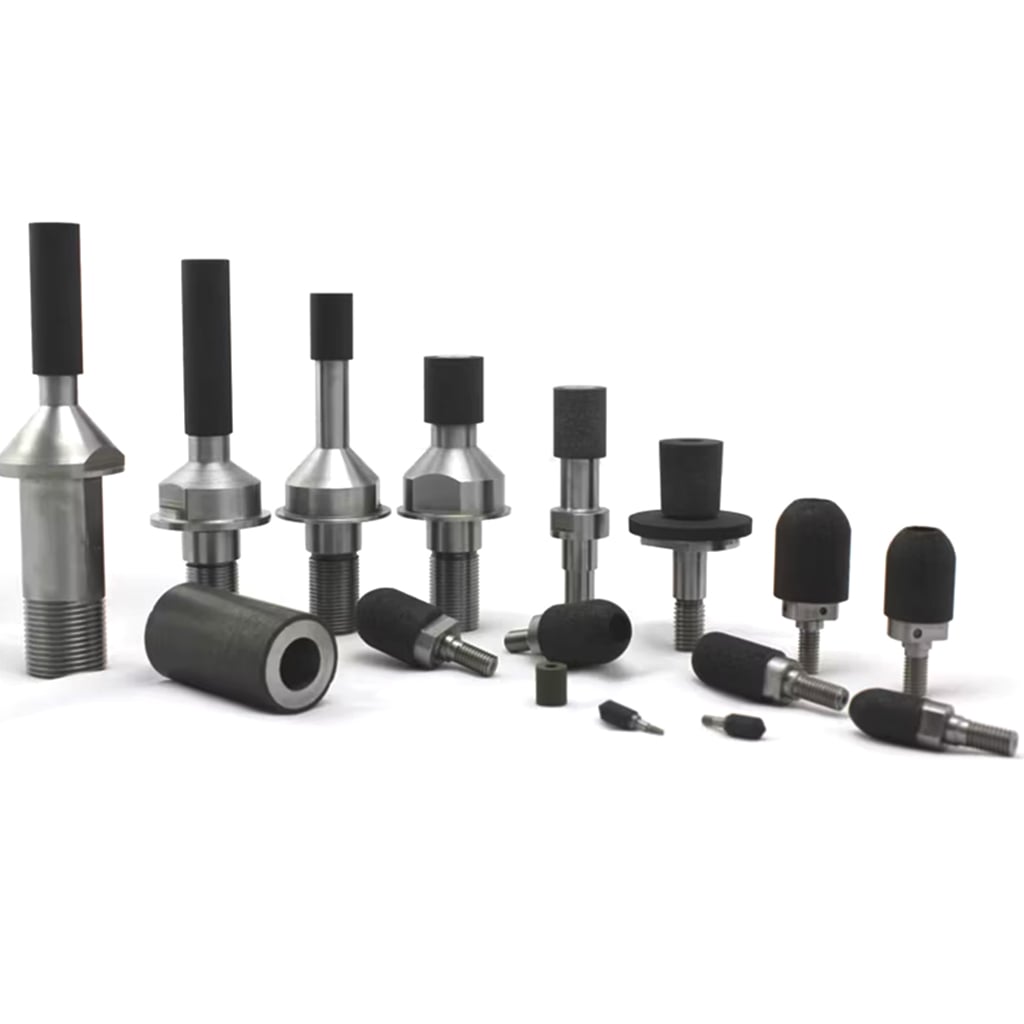

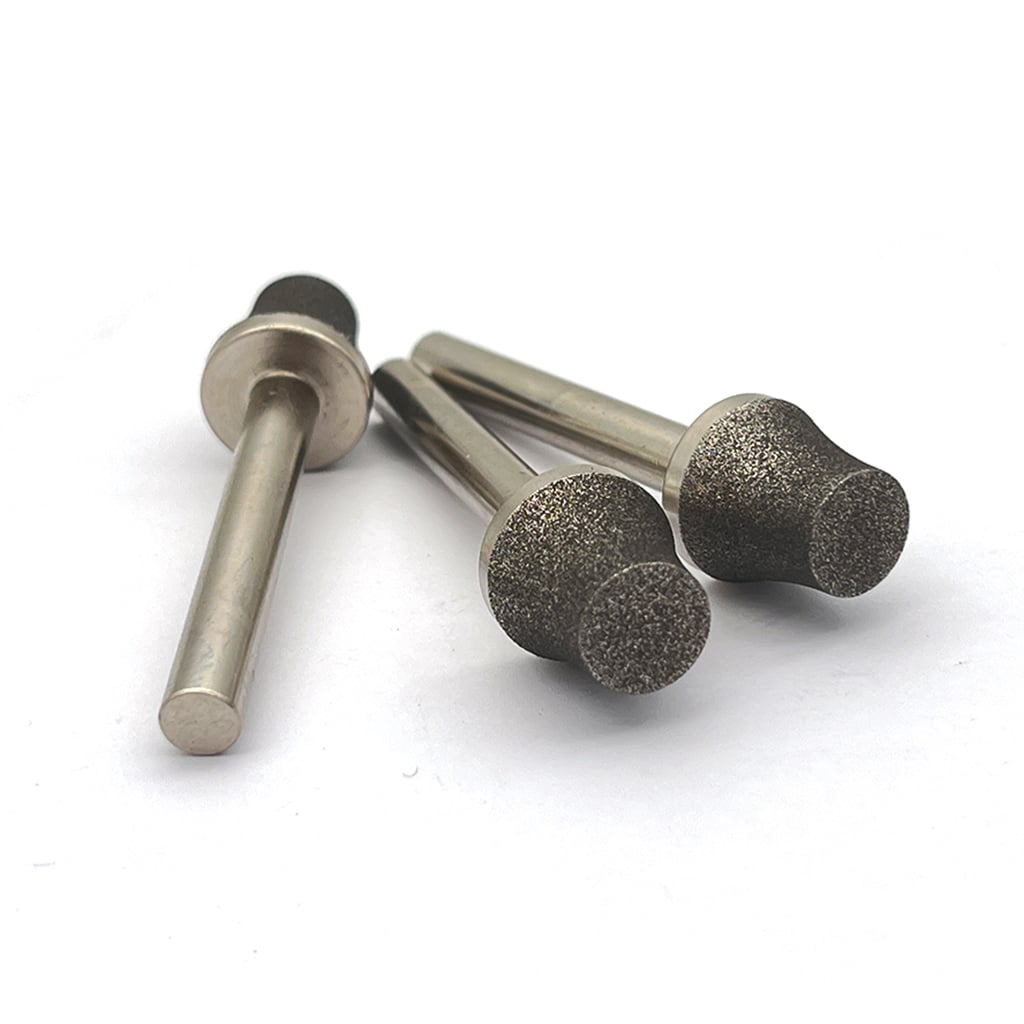

Body type: ID Wheel with Shank, ID Wheel without Shank
Model type: 1A8, 1A1W, 1A1，DWA
Diameter: 10-100mm

MOQ：5 pcs

Description

+86-371-55909782

[email protected]

Description

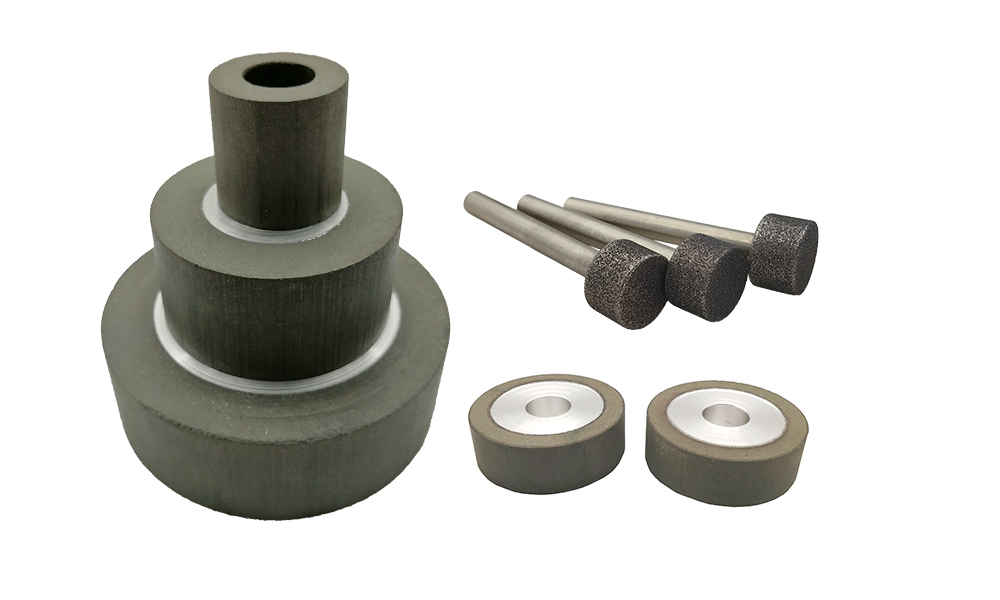

Internal Grinding Wheel is a high-performance tool used for grinding internal surfaces of workpieces in a variety of applications. REZZ diamond CBN internal diameter grinding wheel is ideal for quantity grinding on ID grinding.
REZZ will provide you with system solutions for industries such as automotive, aerospace, medical industries, high precision grinding, etc.

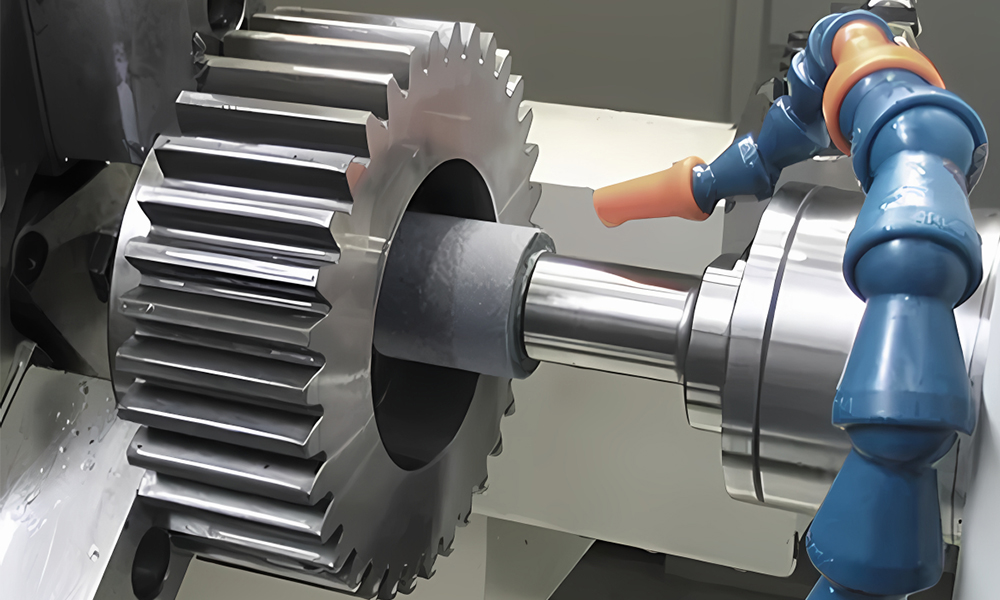

Features:

* Good surface finish and efficient
* High grinding efficiency
* High grinding precision
* Good consistency of workpiece size
* Long service life of grinding wheel

Parameters:

Abrasive	Diamond, CBN,PA & SG abrasive
Bonding	Resin, Vitrified,Electrified
Model	1A8, 1A1W, 1A1，DWA
Grit	customized
Popular Sizes	10-100mm
MOQ	5 piece

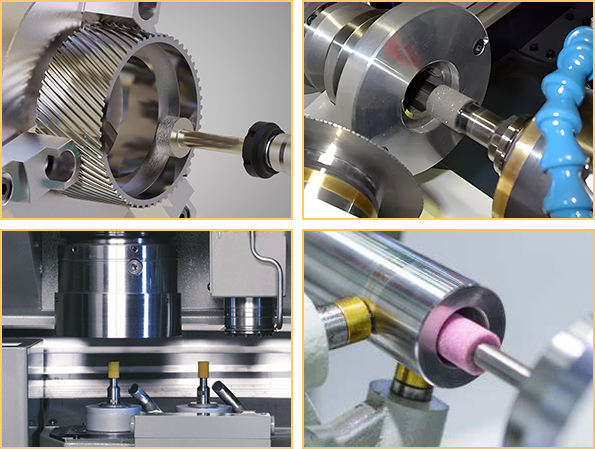

Application:

Grinding Workpiece: harder alloys, ceramics ,cermet,steering pump and compressor,bearing races,injection nozzles,hydraulic lifter,gear bores and many others

Applicable Tool Material: high-speed steels, high carbon, high chrome steels, tool & die steels, cast iron,Carbide, ceramic and other materials

Grinding Method: ID grinding

Applicable Grinding Machine: internal grinding machine or a universal cylindrical grinding machine

Specifications:

Dimensions
Diameter	10mm/15mm/25mm/30mm or As required
Body	Aluminum body or matrixless

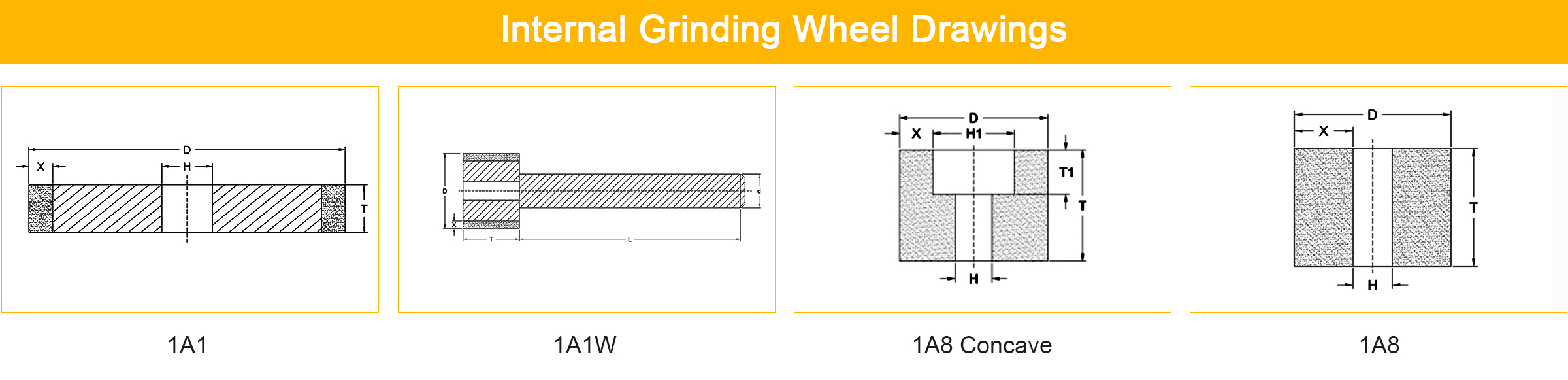

Wheel Shape	1A8, 1A1W, 1A1，DWA
Any nonstandard size and grits can customized.(tell me size or drawing is enough)
