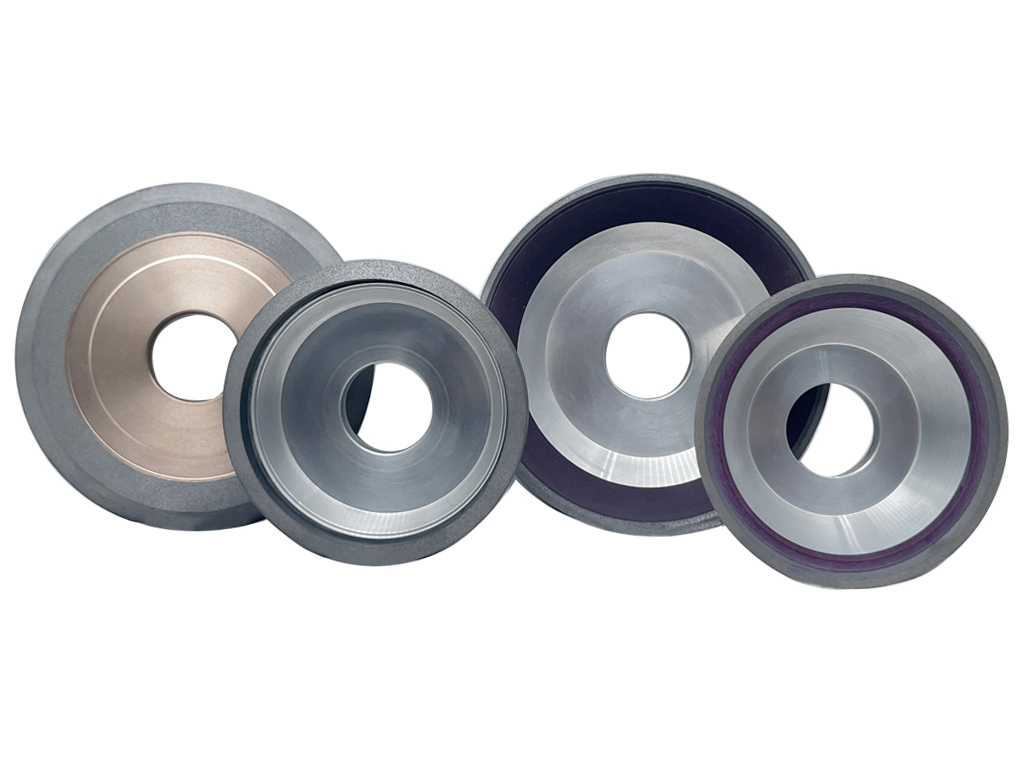

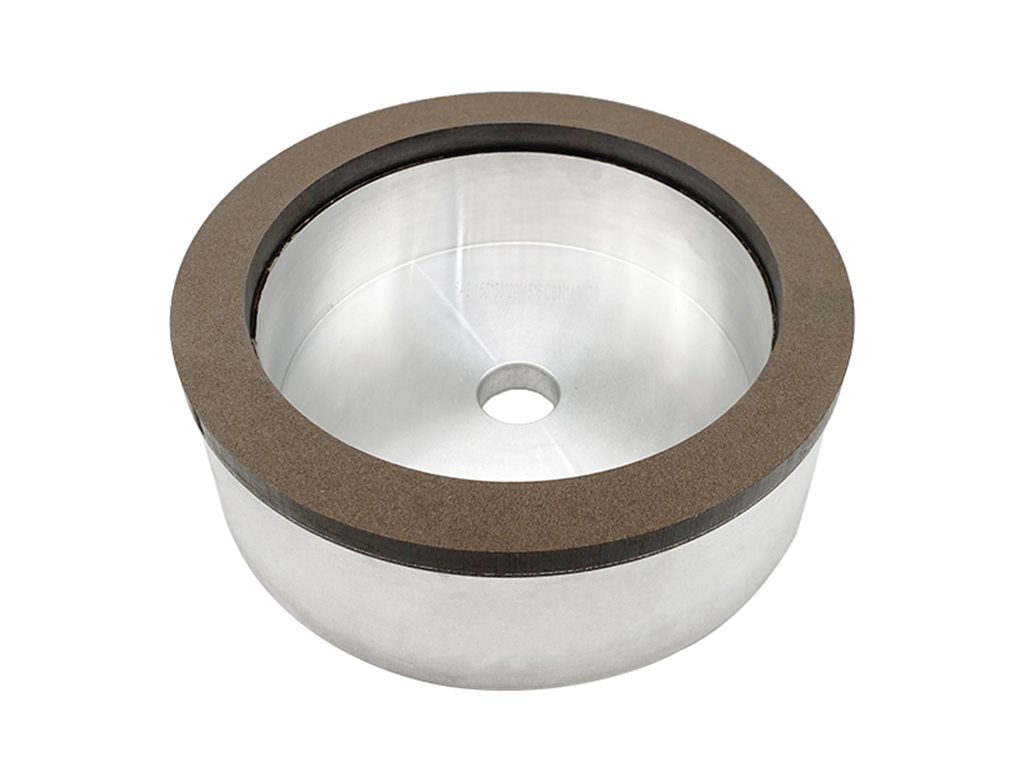

Metalworking Tool Grinding Wheels for Drill Bits Endmills

Metalworking Tools Grinding and Solution
– Grinding , sharpening standard carbide inserts, ceramic, cermet inserts
micro drills, reamer, etc
– Grinding PCD, PCBN, MCD/CVD diamond tools

Our Diamond and CBN wheels are available in resin bond and hybrid bond.

REZZ provides a line of solution and services for ultra performance tools grinding on CNC machines.Our services include fluting, gashing clear edge and relief angle, OD grinding of the tungsten carbide, HSS, milling cutter, reamer and drill, etc.



 Diamond Features:

High Profile Retention Ability
* Sharp & Fast Grinding
* Excellent Surface Finishes
* Less Dressing
* High Productivity


hybrid bond(28dd15bc7f).jpg



metalworking tool grinding-1.jpg

Grinding Methods:

1 Cylindrical Grinding
2 Sharpening
3 Fluting
4 Gashing clear edge
5 Relief angle
6 OD Grinding




 Application:

Grinding Workpiece: Solid carbide, Metal cutting tools,

HSS Round tools & inserts, like endmills, drills, milling tools and other.

Applicable Tool Material: tungsten carbide HSS steel materials, etc.

Applicable Grinding Machine: CNC Cutting Tool Grinding Machines, CNC full automatic 5 Axis.

Applicable Machine Brand: ANCA, Walter, SCHUTTE, EWAG,

SCHNEEBERGER, HUFFMANN And So On.

Specifications:



Dimensions
D T H X W Grit
(mm) Inch″ (mm) Inch″
50-1000 2″-39.5″ 2-50.8 0.08-2″ TO YOUR REQUEST 2-38mm 2-30mm customized
Any nonstandard size and grits can customized.(tell me size or drawing is enough)
