The flexible diamond grinding wheel is resin bond and Combined with selected diamond powder, To make the wheel have an extremely flexible and excellent cutting ability. Mainly used in the special-shaped processing of hard and brittle materials such as gemstone, crystal, glass, artificial crystal, ceramics, etc. Through the polishing from coarse to fine grain grinding wheels, the surface of make the work piece is extremely smooth and bright.

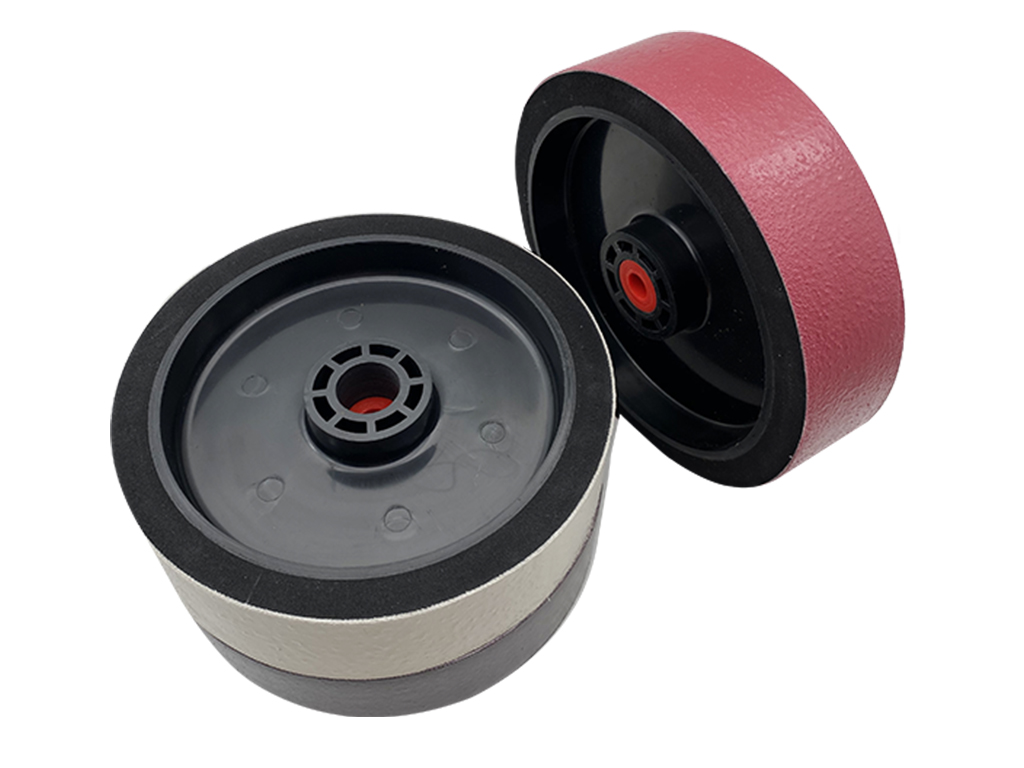

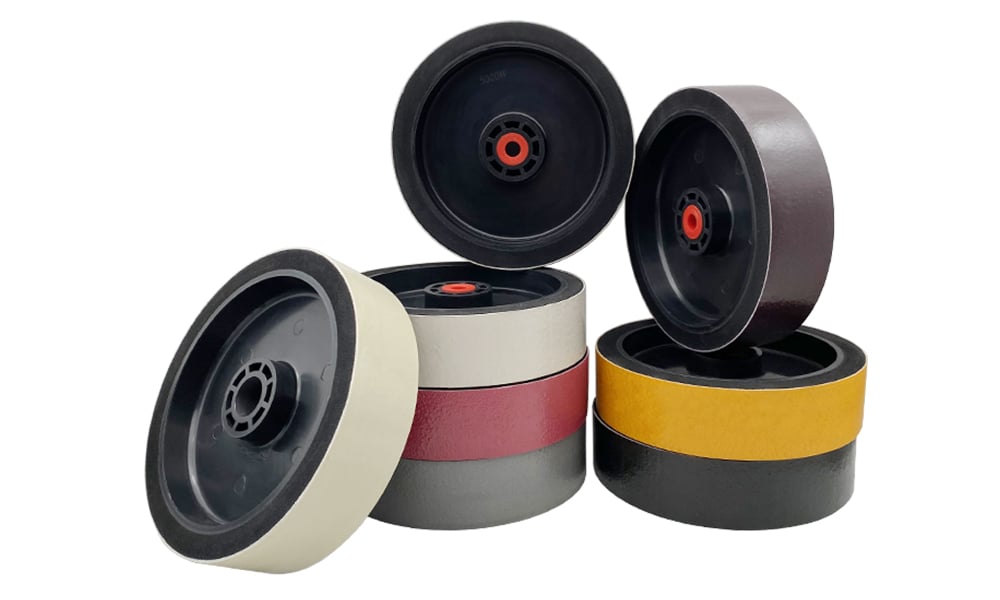

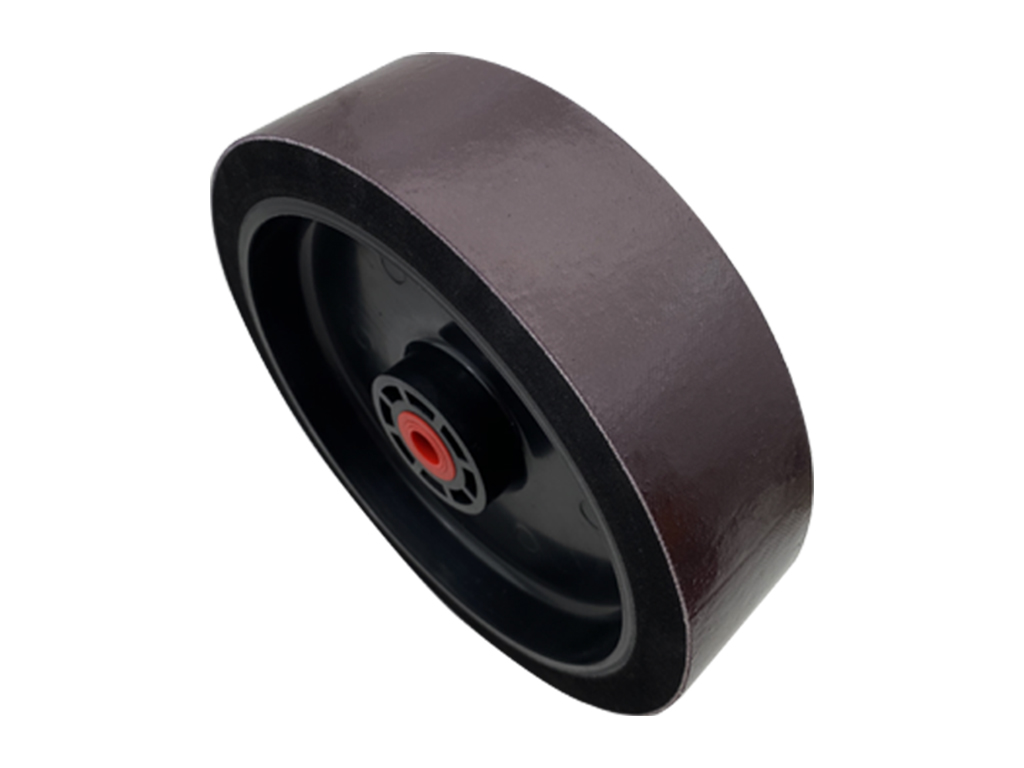

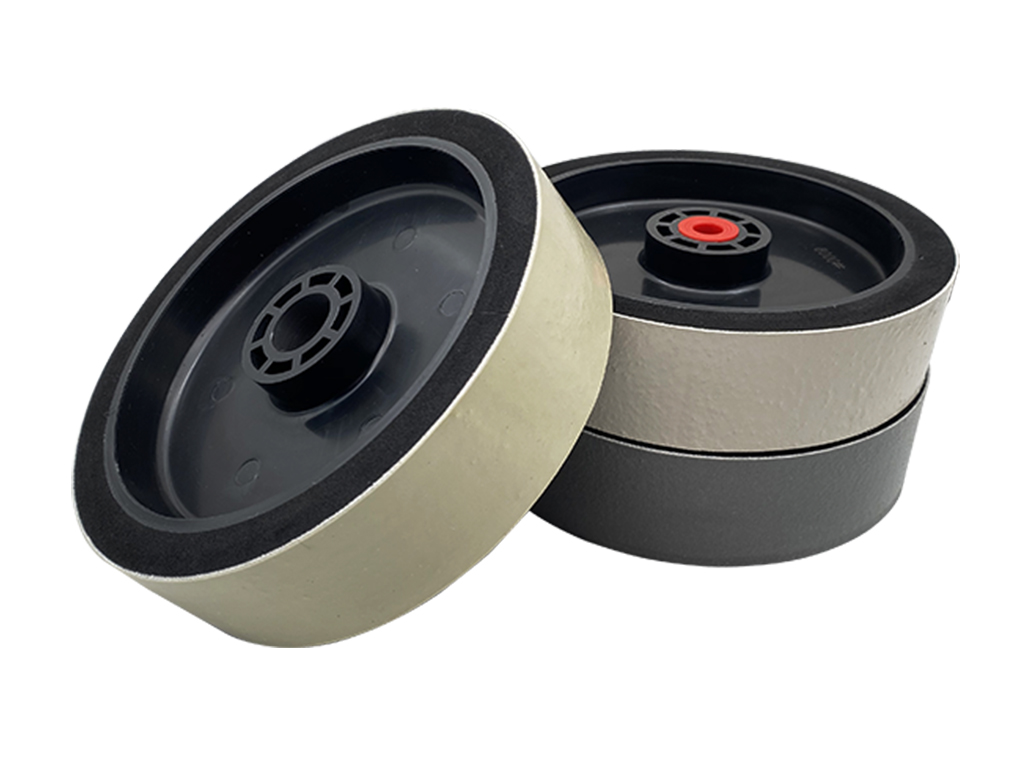

Soft Resin Wheels Lapidary Diamond Grinding Wheels for Polishing Gemstone
Features:
* Good surface quality, used to polish a variety of surface
* High wear resistance, durable, high grinding efficiency
* High parallelism and flatness of workpiece
* Precise particle size, uniform diamond sand adhesion, fine polishing of gems
* Wide range of applications, not only for grinding gemstones, but also for hard alloy, non-metallic materials.
|
|
|
|
Parameters:
| Abrasive | Diamond |
| Bonding | Resin |
| Model | 1A1 |
| Grit | #60-#50000 |
| Popular Sizes | 150-200mm |
| MOQ | 5 piece |
|
|

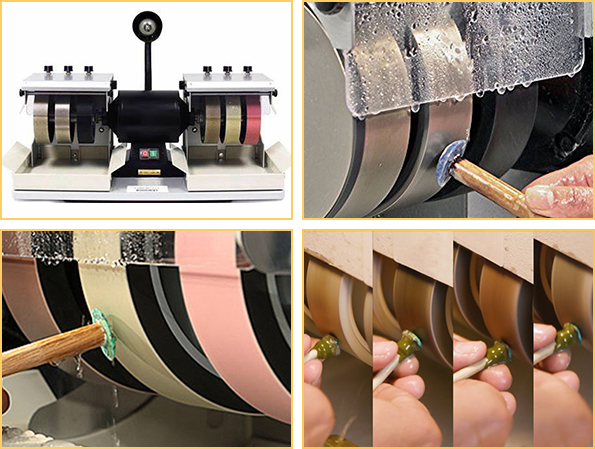

Application:
Grinding Workpiece: Crystal, gemstone, quartz, glass, agate, sapphire, scissors, ceramic handicrafts, metal pendants, wood products, bracelet processing, etc.
Applicable Tool Material: Gemstone materials, glass materials, stainless steel, ceramic materials, metal material.
Grinding Method: Polishing
Applicable Grinding Machine: Cabbing machines

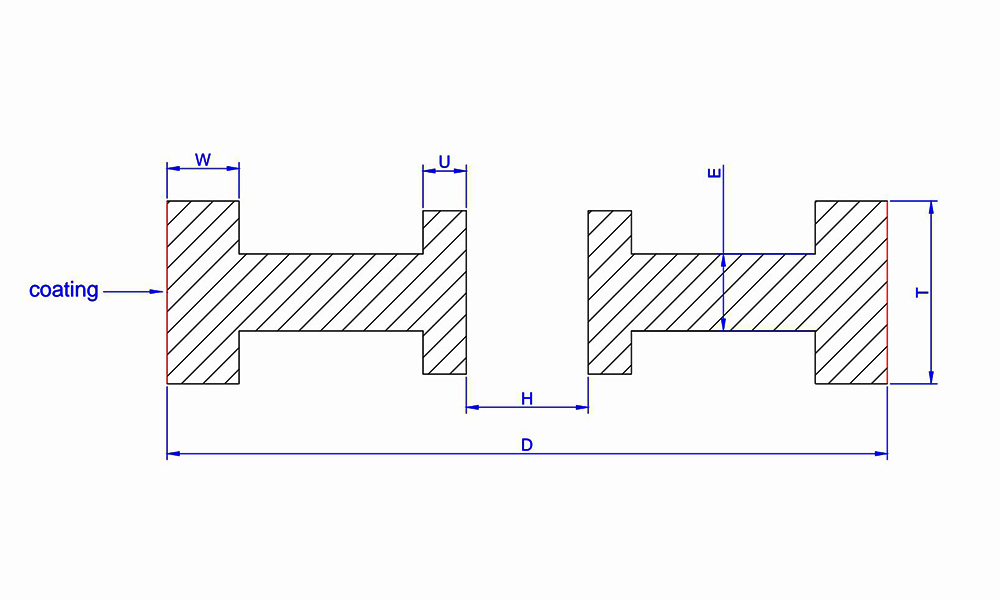

Specifications:
| Dimensions | |||
| D(mm) | T(mm) | H(mm) | Grit |
| 150mm | 38mm | 25.4/19/15.8/12.7 | #60, 140, 280, 600, 1200, 3000, 5000, 8000, 14000, 50,000 |
| 200mm | 50mm | 25.4/19/15.8/12.7 | #60, 140, 280, 600, 1200, 3000, 5000, 8000, 14000, 50,000 |
| Any nonstandard size and grits size can customised (tell us size or drawing is enought) | |||
