This tungsten carbide cutting cutter is mainly used for cutting and machining metal ,paper,wooden and steel products.
Outside diameter ranges: 18 mm to 300 mm
PRODUCT DETAILS

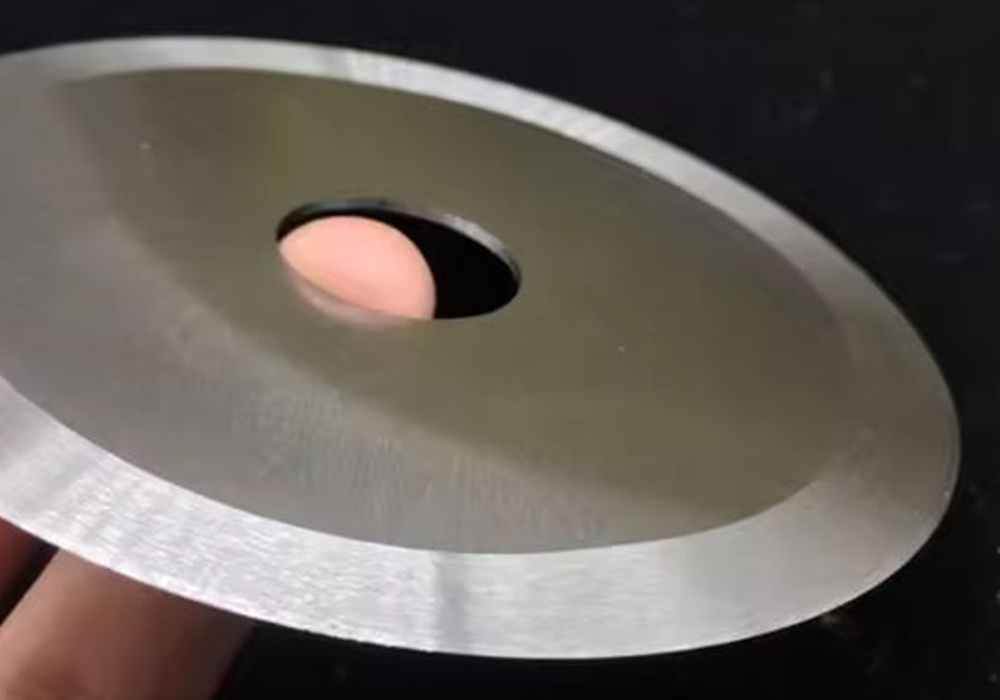

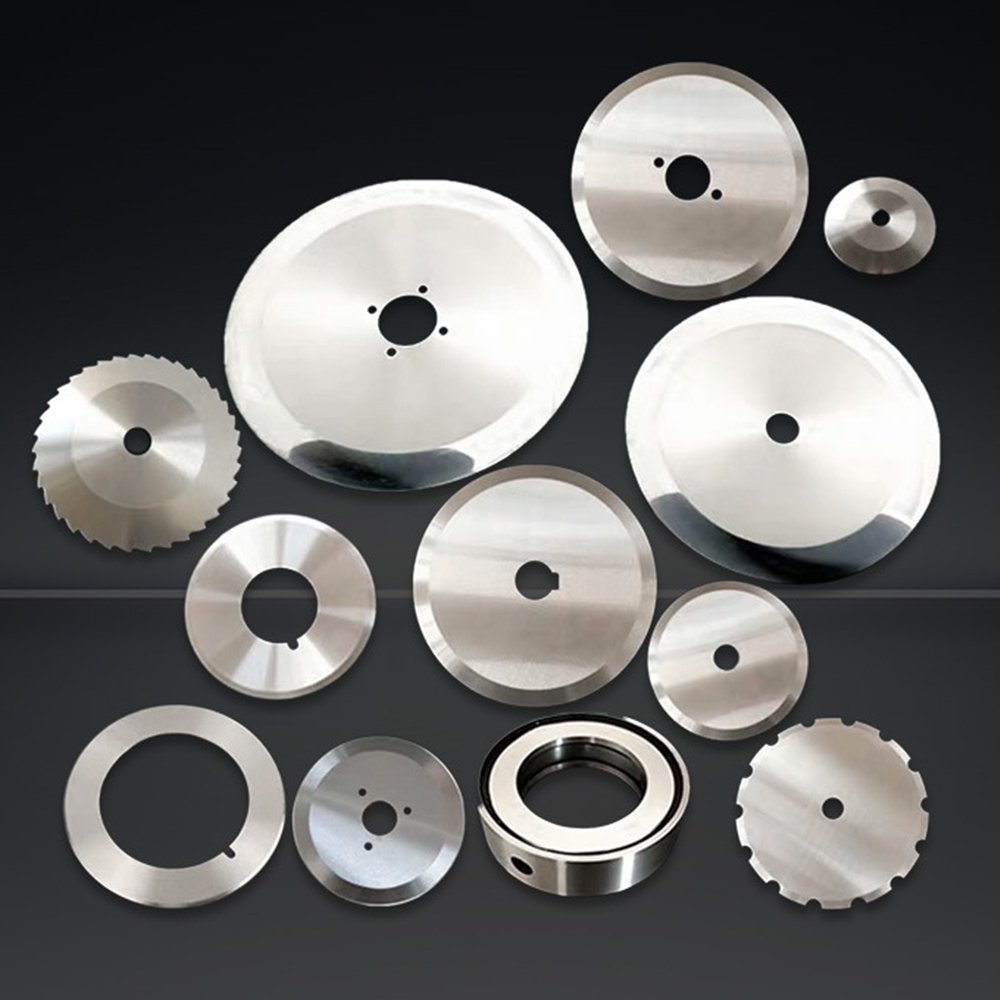

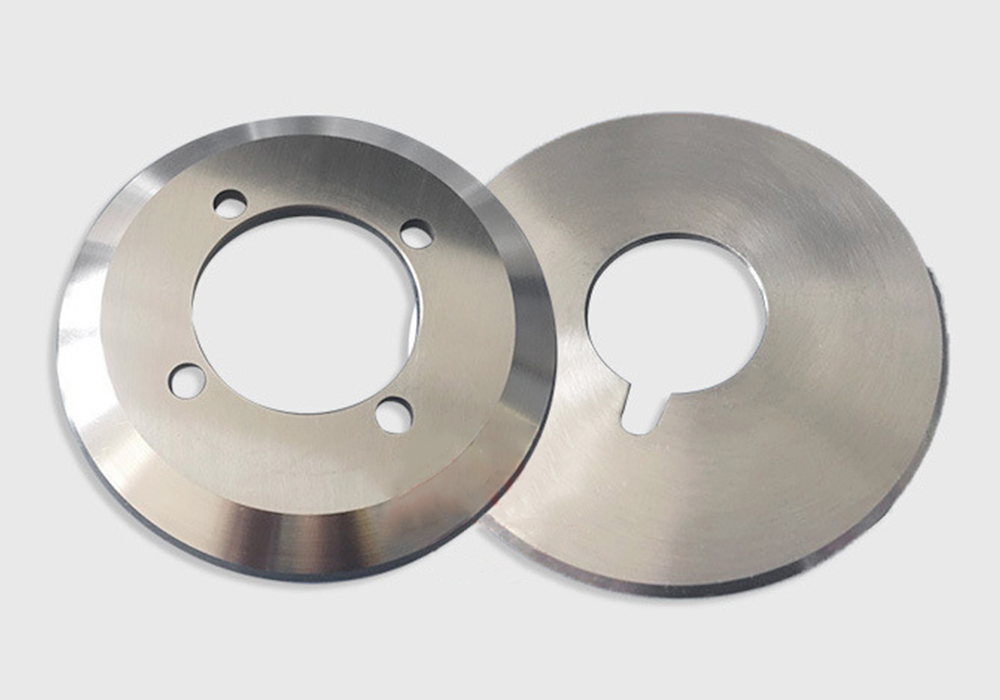

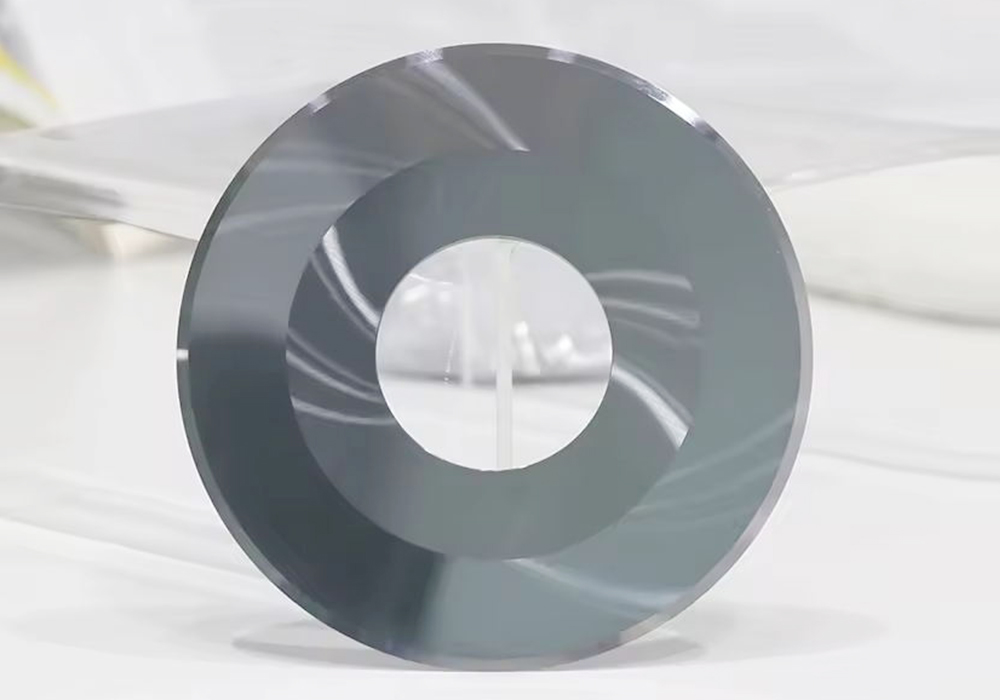

Tungsten steel round cutter cutting Knife Blade cutting wheel disc
Applications of Tungsten steel round cutter :
1.used for metal cutting, tape, etc.
2.used for slitting tobacco, cigarette filters, cigars, etc. The blade of the cigarette machine has high hardness, the edge is sharp and smooth, and the cutting surface of the cut tobacco leaves and filter tip is smooth without sagging.
3.used to cut corrugated cardboard on single machine or corrugated paper production line at home and abroad.
4.used in the electromagnetic capacitor industry, base paper trimming and cutting toilet paper, wet wipes, paper tubes,etc.
5.used for slitting film, optical fiber, asbestos tile, copper foil and aluminum foil, meat food, etc.
| Popular Name | Tungsten Carbide Cutting Wheel | Outside Diameter | 18-300MM, customized |
| Thickness | 0.6-4.5mm | Inner Diameter | 0.6-4.5mm |
Advantage:
| TYPE | OD (mm) |
ID (mm) |
S (mm) |
TYPE | OD (mm) |
ID (mm) |
S (mm) |
|---|---|---|---|---|---|---|---|
| Φ12×Φ6×S | 12 | 6 | 0.6-4.5 | Φ60×Φ19×S | 60 | 19 | 0.8-7.0 |
| Φ13×Φ6×S | 13 | 6 | 0.6-4.5 | Φ63×Φ17×S | 63 | 17 | 0.8-7.0 |
| Φ16×Φ6×S | 16 | 6 | 0.6-4.5 | Φ70×Φ22×S | 70 | 22 | 0.8-7.0 |
| Φ22×Φ10×S | 22 | 10 | 0.6-4.5 | Φ75×Φ22×S | 75 | 22 | 0.8-7.0 |
| Φ25×Φ12×S | 25 | 12 | 0.6-5.5 | Φ80×Φ22×S | 80 | 22 | 0.8-7.0 |
| Φ32×Φ10×S | 32 | 10 | 0.8-5.5 | Φ83×Φ21×S | 83 | 21 | 0.8-7.0 |
| Φ40×Φ10×S | 40 | 10 | 0.8-6.0 | Φ86.5×Φ21.5×S | 86.5 | 21.5 | 1.0-7.0 |
| Φ45×Φ13×S | 45 | 13 | 0.8-6.0 | Φ90×Φ22×S | 90 | 22 | 1.0-7.0 |
| Φ53×Φ13×S | 53 | 13 | 0.8-6.0 | Φ100×Φ22×S | 100 | 22 | 1.0-7.0 |
| Φ52×Φ24.5×S | 52 | 24.5 | 0.8-6.0 | Φ125×Φ22×S | 125 | 22 | 1.0-7.0 |
| Φ53×Φ24.5×S | 53 | 24.5 | 0.8-6.0 | Φ200×Φ70×S | 200 | 70 | 3.0-4.5 |
| Φ55×Φ16×S | 55 | 16 | 0.8-6.0 | Φ250×Φ70×S | 250 | 95 | 3.0-4.5 |
| Φ58×Φ22×S | 58 | 22 | 0.8-6.0 |
