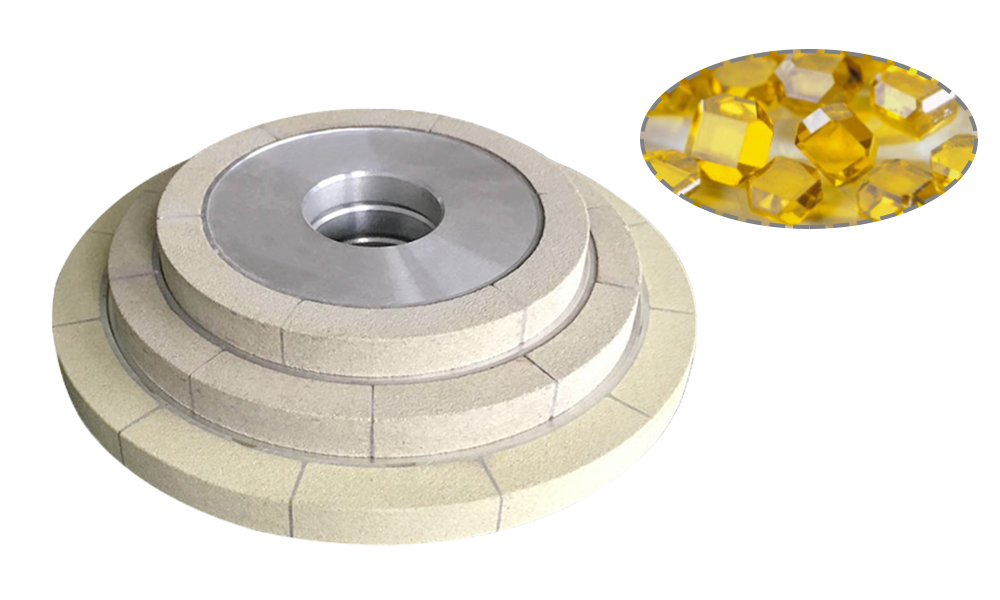

Vitrified Bond Diamond Grinding Wheels

Vitrified bond grinding wheels are made by bonding abrasive grains with a well-proportioned vitrified bond, and then pressed, dried, baked and trimmed. Vitrified bond diamond grinding wheels have high strength, good heat resistance, sharp cutting, high grinding efficiency, and are not prone to heat and clogging during the grinding process. They have small thermal expansion to control processing accuracy. Vitrified bonds are extremely sharp, so they are very suitable for CBN grinding wheels.

The ceramic bond diamond cbn grinding wheel we produce is designed for precision grinding, processing super abrasives (PCD CBN PCBN CVD MCD ND), hardened steel and other hard materials. It is mainly used for grinding very hard materials and pursuing high cutting rates. You can choose this durable grinding wheel.

REZZ will provide you with system solutions for tool grinding, crankshaft grinding, automotive parts grinding, gem grinding, bearing grinding and other industries.



 Vitrified Bond Features:

* High precision, it can be used for precision grooving and cutting.
* Narrow cutting crack, greatly improve the utilization ratio of raw meterials.
* High efficiency and sharp cutting.
* High rigidity, high strenght and long service life.
* Excellent dynamic balance control.

Vitrified



pcd

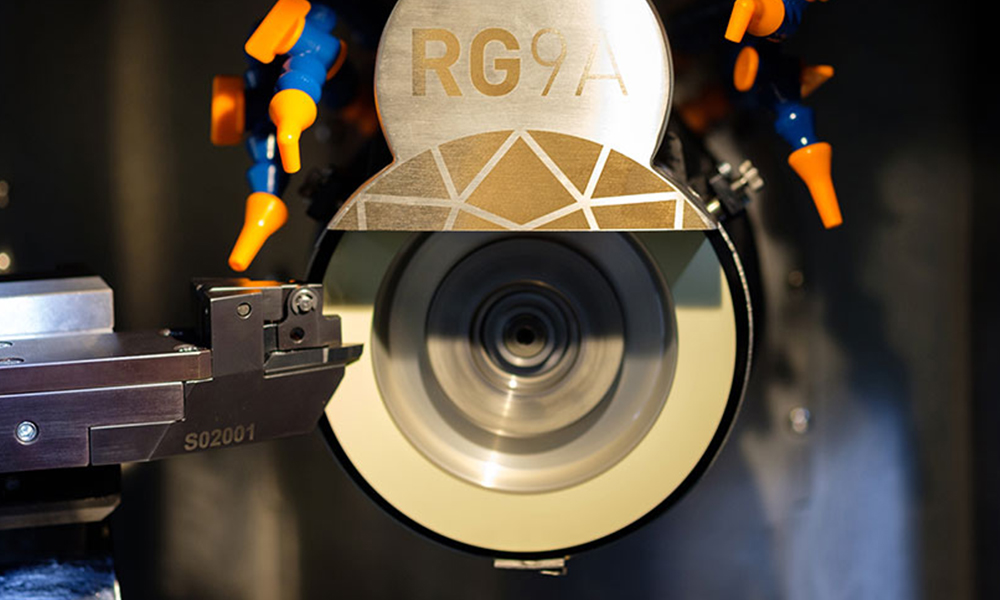

Grinding Methods:

1 Cylindrical Grinding
2 Surface Grinding
3 ID Grinding
4 Double Face Grinding
5 Cutting

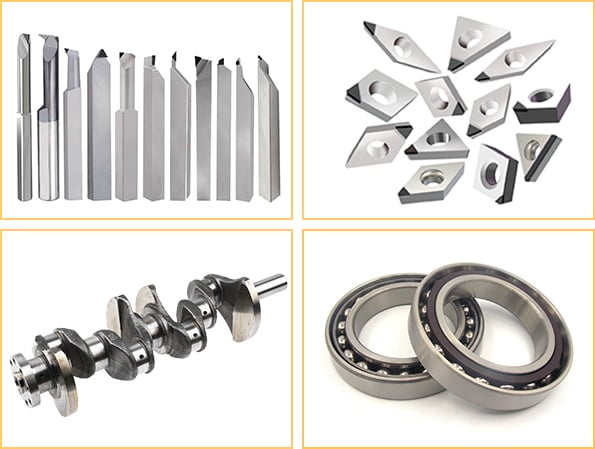

 Application:

Grinding Workpiece: Cutting tool & Inserts, crankshaft camshaft, gemstone, auto parts, silicon wafer, etc.

Applicable Tool Material: PCD PCBN MCD CVD raw materials, tungsten carbide materials, silicon materials, etc.

Applicable Grinding Machine: JUNKER, SCHAUDT, LANDIS, TOYODA.

Specifications:

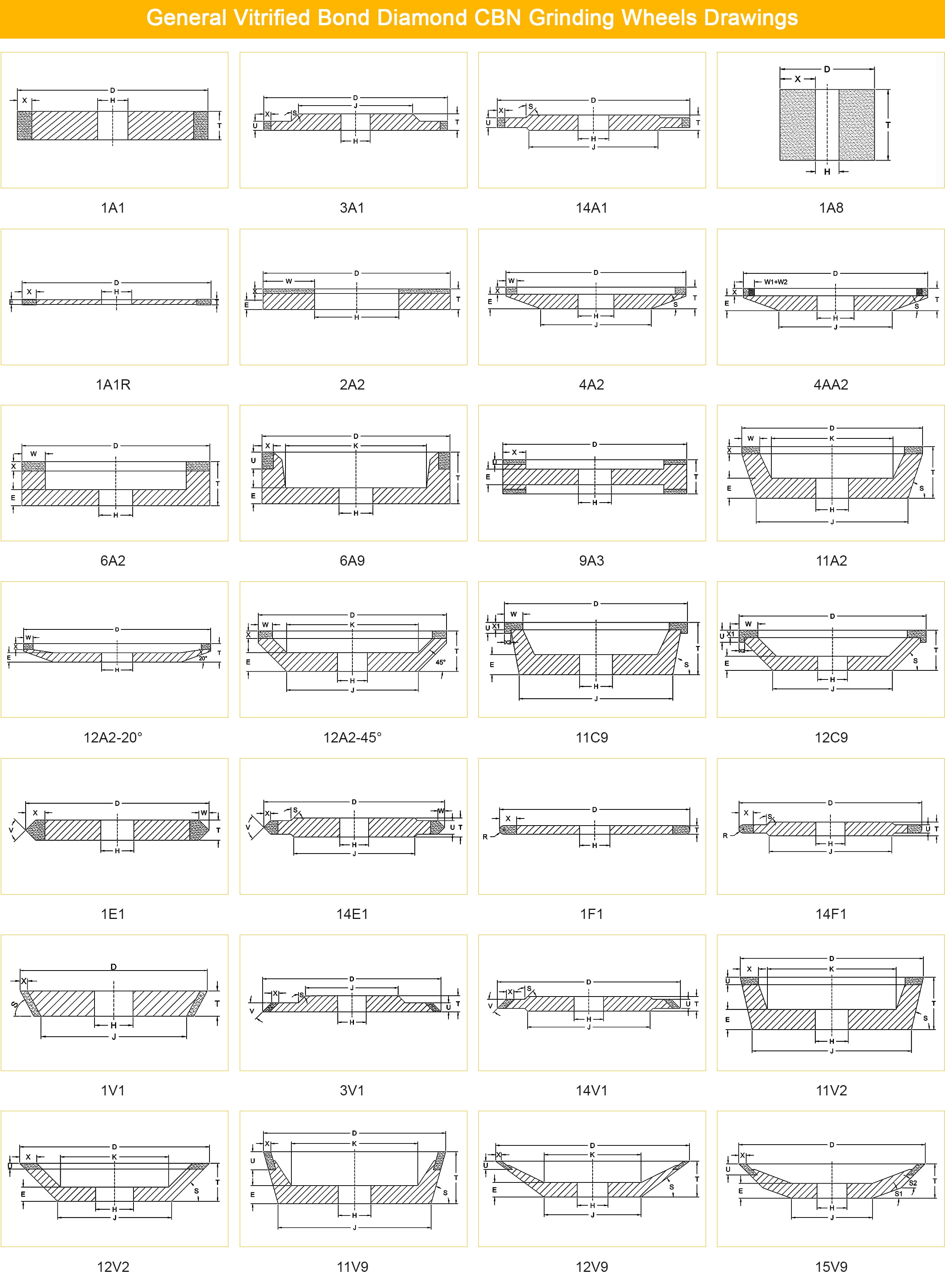

Dimensions
D T H X W Grit
(mm) Inch″ (mm) Inch″
50-650 2″-25.6″ 2-50.8 0.08-2″ TO YOUR REQUEST 2-38mm 2-30mm customized
Any nonstandard size and grits can customized.(tell me size or drawing is enough)
