Mastering Diamond Grinding Wheel Selection for Circular Saw Blade Sharpening: A Guide by Ruizuan

Mar 28, 2025

Circular saw blades play a pivotal role in woodworking, metalworking, and construction industries. To ensure optimal performance, regular sharpening is essential, and the right diamond grinding wheel is the key to achieving this. At Zhengzhou Ruizuan Diamond Tools, drawing on years of industry expertise, we’ve developed a range of wheels specifically designed to meet the diverse requirements of end, side, and top grinding for circular saw blades. In this article, we’ll break down how different grinding methods and bond types—resin and ceramic—influence wheel selection.

Tailoring Grinding Wheels to Different Grinding Methods
End Grinding
End grinding is typically used for quickly removing a significant amount of material from the saw blade’s cutting edge. Our resin - bonded diamond grinding wheels excel in this application. With grit sizes ranging from 80 - 120, they feature a porous structure that promotes efficient chip evacuation. The self - sharpening nature of resin - bonded wheels ensures consistent cutting performance. For example, when sharpening carbon steel circular saw blades in a high - volume woodworking shop, our resin - bonded wheels can increase the material removal rate by 30% compared to traditional wheels, reducing the overall sharpening time.
Side Grinding
Side grinding is crucial for maintaining the side profile of the saw blade, ensuring a clean and precise cut. Ceramic - bonded diamond grinding wheels are ideal for this task. The high - stiffness of the ceramic bond allows for excellent shape retention, enabling accurate replication of the blade’s original side profile. Our ceramic - bonded wheels, with grit sizes between 150 - 220, are designed to provide a smooth finish, reducing the risk of burrs on the side of the blade. In a metalworking factory, these wheels have proven to enhance the quality of cuts on aluminum alloy saw blades, leading to fewer rejects.
Top Grinding
Top grinding focuses on flattening the top surface of the saw blade, improving its overall flatness and balance. A combination of our resin - and ceramic - bonded wheels can be used depending on the specific requirements. For initial material removal, resin - bonded wheels with coarser grits can be employed, followed by ceramic - bonded wheels with finer grits for a polished finish. This two - step process ensures that the saw blade not only cuts effectively but also runs smoothly, reducing vibrations during operation.

The Advantages of Resin and Vitrified Bond Wheels
Resin - Bond Grinding Wheels
Resin - bonded diamond grinding wheels offer flexibility and adaptability. They are lightweight and have a relatively low hardness, which makes them suitable for applications where heat generation needs to be minimized. This is particularly important when sharpening saw blades made of heat - sensitive materials like high - speed steel. Our resin - bonded wheels are engineered with a unique bonding formula that enhances the retention of diamond particles, extending the wheel’s lifespan.
Vitrified - Bond Grinding Wheels
Vitrified - bonded diamond grinding wheels are known for their high strength and wear resistance. The ceramic bond provides excellent thermal stability, allowing the wheels to withstand high grinding temperatures without deformation. This makes them ideal for grinding hard and abrasive materials such as tungsten carbide saw blades. Our ceramic - bonded wheels are manufactured using advanced sintering techniques, ensuring consistent quality and performance.

Ruizuan’s Comprehensive Product Range

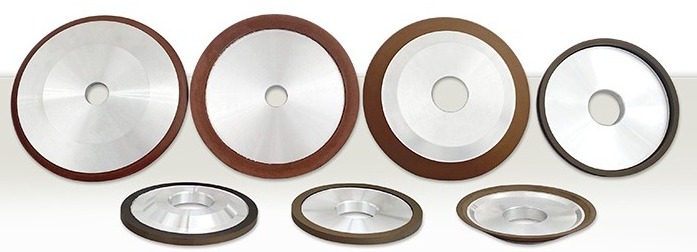

At Ruizuan, we offer a diverse range of diamond grinding wheels for circular saw blade sharpening. Our wheels come in various diameters, thicknesses, and grit sizes to accommodate different saw blade sizes and grinding requirements. Each wheel undergoes strict quality control procedures, including hardness testing, balance testing, and cutting performance evaluation. We also provide customized solutions, allowing customers to specify bond types, grit distributions, and wheel profiles according to their unique needs.

Selecting the right diamond grinding wheel for circular saw blade sharpening is a complex yet crucial decision. At Zhengzhou Ruizuan Diamond Tools, we are dedicated to providing you with the knowledge, products, and support to make the best choice.
